Model Name |
ITD35SDN1** | ||
|
IP Rating |
Optional | ||
|
| |||
|
Single LCD Monitor |
Single Media Player |
ARM Android Based RK3288(RK3368 optional) | |
|
1×VGA Input |
Chipset: MSTAR |
CPU: Quad-Core Cortex-A17 1.8GHz | |
|
1×DVI Input |
Video Formats Supported: MP4、AVI、DAT、MPG、RM、RMVB、AVC、FLV |
Chipset: N/A | |
|
1×HDMI Input |
Memory: 1G/2G | ||
|
1×DC 24V Input |
Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE File Formats Supported: FAT, FAT32, NTFS |
HDD/SSD: 8G | |
|
|
1×HDMI | ||
|
|
Picture Formats Supported: JPEG, BMP, GIF, PNG 1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot |
1×USB 2.0 | |
|
|
1×mini-SD slot | ||
|
|
|
1×LAN | |
|
|
1×Audio Out |
1×Audio Out | |
|
|
Expansion: USB, COM, Mini-PCIe |
Expansion: USB, COM, Mini-PCIe | |
|
| |||
|
Screen Diagonal (Inch) |
35.3” | ||
|
Display Active Screen Size (mm) |
895(H)×150(V) | ||
|
Aspect Ratio |
TBA | ||
|
Physical Resolution |
1920×325 | ||
|
Maximum Resolution Supported |
1080P | ||
|
Colors |
16.7M | ||
|
Brightness (cd/m2) |
500 (1000 Optional) | ||
|
Contrast Ratio |
5000:1 | ||
|
View Angels |
89/89/89/89 | ||
|
Backlight/Backlight Lifetime |
LED Backlight with 50000Hours'Lifetime | ||
|
| |||
|
Touch Options Tempered Glass |
PCAP (Customized) Optional | ||
|
Touch Drivers |
Windows, Linux, Android, Mac, Raspberry Pi | ||
|
| |||
|
Operating Temperature Range |
-10~60°C (-20~70°C Optional) | ||
|
Humidity Range (RH) |
10-90% | ||
|
24/7/365 Use |
Supported | ||
|
| |||
|
Power Indicator |
Green LED | ||
|
Power Input |
External Power Supply, DC 24V | ||
|
Power Consumption Speakers |
45W Optional | ||
|
| |||
|
Outline Dimension(mm) |
925×181 | ||
|
| |||
|

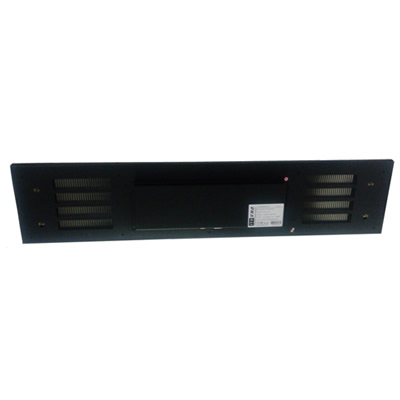

35.3”Stretched LCD Monitor |
ITD35SDN101 | ||
|
35.3”Stretched LCD with Single Media Player |
ITD35SDN1A1 | ||
|
35.3”Stretched LCD with Android Media Player |
ITD35SDN1E1 | ||
|
35.3”Stretched LCD Monitor 1000nits |
ITD35SDN1HB01 | ||
|
35.3”Stretched LCD with Single Media Player 1000nits |
ITD35SDN1HBA1 | ||
|
35.3”Stretched LCD with Android Media Player 1000nits |
ITD35SDN1HBE1 | ||
