OVERVIEW Model Name ITD38SDN1** IP Rating Optional Single LCD Monitor Single Media Player ARM Android Based RK3288(RK3368 optional) 1×VGA Input Chipset: MSTAR CPU: Quad-Core Cortex-A17 1.8GHz 1×DVI Input Video Formats Supported: MP4、AVI、DAT、MPG、RM、RMVB、AVC、FLV Chipset: N/A 1×HDMI Input Memory: 1G/2G 1×DC 24V Input Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE File Formats Supported: FAT, FAT32, NTFS HDD/SSD: 8G 1×HDMI Picture Formats Supported: JPEG, BMP, GIF, PNG 1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot 1×USB 2.0 1×mini-SD slot 1×LAN 1×Audio Out 1×Audio Out Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe Screen Diagonal (Inch) 38” Display Active Screen Size (mm) 930(H)×263.6(V) Aspect Ratio TBA Physical Resolution 1920×540 Maximum Resolution Supported 1080P Colors 16.7M Brightness (cd/m2) 500 (1000 Optional) Contrast Ratio 2500:1 View Angels 89/89/89/89 Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime Touch Options Tempered Glass PCAP (Customized) Optional Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi Operating Temperature Range -10~60°C (-20~70°C Optional) Humidity Range (RH) 10-90% 24/7/365 Use Supported Power Indicator Green LED Power Input External Power Supply, DC 24V, DC9-36V Optional Power Consumption Speakers 55W Optional Outline Dimension(mm) 960×293.7 38”Stretched LCD Monitor ITD38SDN101 38”Stretched LCD with Single Media Player ITD38SDN1A1 38”Stretched LCD with Android Media Player ITD38SDN1E1 38”Stretched LCD Monitor 1000nits ITD38SDN1HB01 38”Stretched LCD with Single Media Player 1000nits ITD38SDN1HBA1 38”Stretched LCD with Android Media Player 1000nits ITD38SDN1HBE1
ITD stretched bar-type LCD displays with ultra-wide aspect ratio is perfect for catching people’s attention that’s a perfect alternative of traditional LED displays, Take solace in ITD’s Bar LCD Monitor when integrating it into a display as it will always captivate audiences and work to provide as an informative display for any application. The stretched LCD display is a powerful tool for advertising or as an information display that can be withoptional single SD card and USB port, ARM based player and single monitor with VGA, DVI, HDMI inputs integrated. ITD stretched bar type LCD display comes with standard 500nits or 1000nitsthat can be used in indoor/outdoorprojects that include, but are not limited to digital signage, restaurant displays, airport terminal signs, public transportation or places that would like to have a special screen for signage displays. The special bar LCD monitor is sturdy and fits well into many applications.

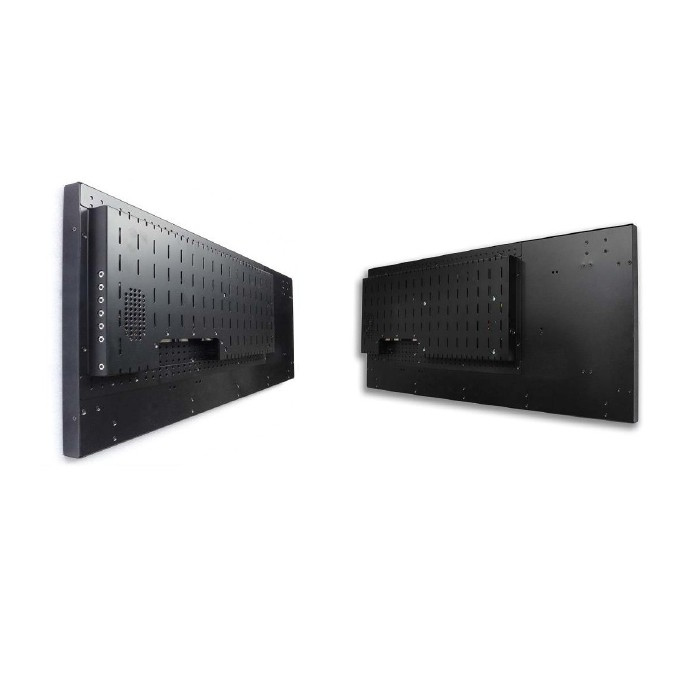

Stretched Bar LCD Display
Configuration Options
LCD Panel
Touch Panel
Operation
Power /Speakers
Mechanical Dimension
Order Information
