BENEFITES - Exceptional quality and highly engineered industrial heavy duty monitors - Optional touchscreens like IR and PCAP - Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions - Solid steel and stainless steel or aluminum alloy enclosures - IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents - Accuracy in high-use applications - Long lasting product cycle for continuity thru all phases of project
OVERVIEW ITD full IP66 LCD touchscreen displays are fully-integrated units that combine touch screen, waterproof and dustproof, fully sealed stainless steel chassis or aluminum alloy chassis and I/O with IP65/ NEMA 4 Ingress protection rating designed to be tough and rugged. The enclosure features easy-to clean stainless steel/aluminum alloy construction that is corrosion resistant. They are built for demanding applications with high industrial requirement, such as food processing, beverage, pharmaceutical and tobacco industries for operator control and monitoring. ITD full-range selection is provided in screen sizes from 7¡±~65¡±.

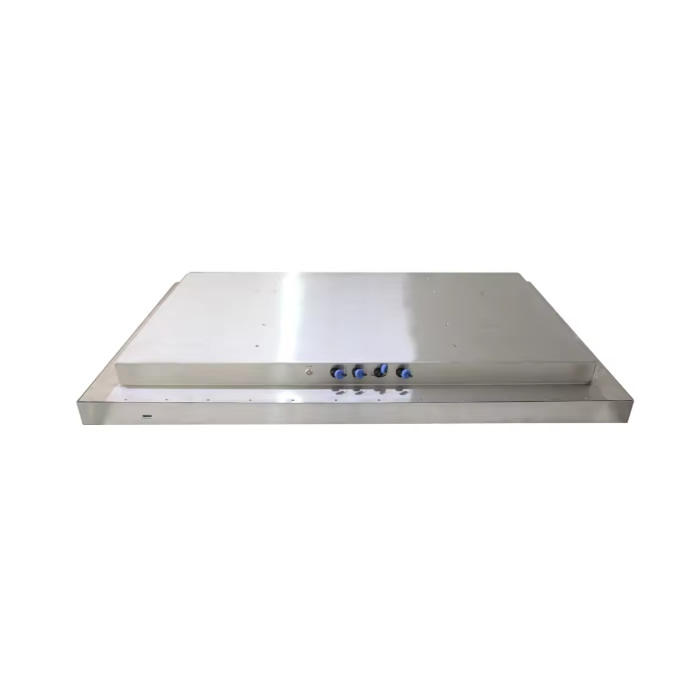

Full IP65/IP66 Touchscreen Monitor
Model Name
ITD43CMG1IP*1
IP Rating
Full IP65/IP66(IP67 optional)
LCD Panel
Screen Diagonal (Inch/cm)
43¡±
Display Active Screen Size (mm)
941.184(H)¡Á529.416(V)
Aspect Ratio
16:9
Physical Resolution
1920¡Á1080
Maximum Resolution Supported
1920¡Á1080
Colors
16.7M
Brightness (cd/m2)
400nits
Contrast Ratio
1400:1
View Angels
89/89/89/89
Backlight/Backlight Lifetime
LED Backlight with 50000 Hours¡¯ Lifetime
Touch Panel
Touch Options
IR, PCAP
Touch Drivers
Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input
1 ¡Á VGA
N/A
1 ¡Á HDMI(Optional)
Audio
N/A
Touch Connector
1 ¡Á USB(Optional)
Power Connector
1 ¡Á DC2.0
Operation
Operating Temperature Range
0~50¡ãC
Humidity Range (RH)
10-90%
24/7/365 Use
Supported
Power
Power Indicator
N/A
Power Input
DC 24V
Power Consumption
140W
Order Information
43¡±Full IP65/IP66 LCD Monitor with IR Touch, Aluminum Housing
ITD43CMT2IPA1
43¡±Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing
ITD43CMT5IPA1
43¡±Full IP65/IP66 LCD Monitor with IR Touch, Stainless Steel Housing
ITD43CMT2IPS1
43¡±Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing
ITD43CMT5IPS1
43¡±Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing
ITD43CMG1IPA1
43¡±Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing
����
