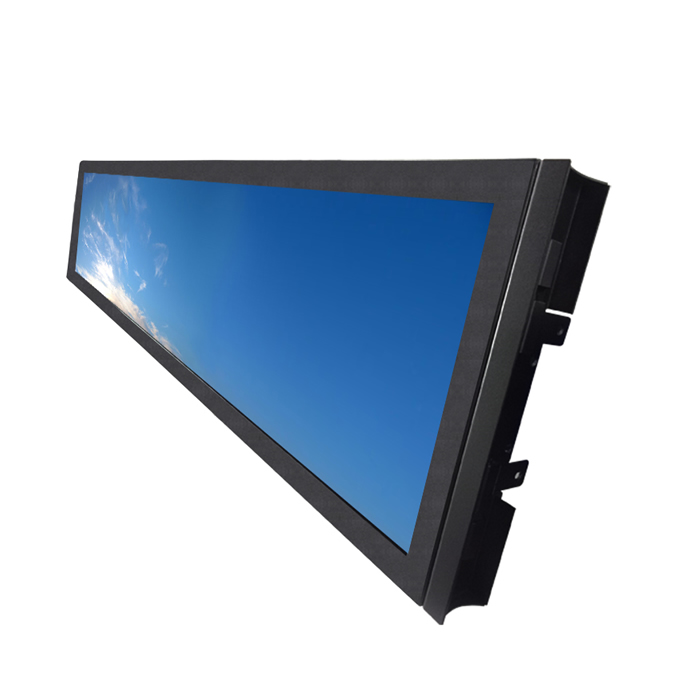

43 inch Stretched Bar LCD Display

BENEFITES
- Exceptional quality and commercial-grade reliability and performance
- Stunning HD display, Energy-Efficient LED Backlight Technology
- All steel construction designedfor harsh&publicenvironments
- Optional touchscreenlike custom projected capacitive touch panel
- Superior viewing angles, contrast ratio and brightness
- Optional single media player, network media player integrated
- Portrait and landscape display flexibility
- Unique design accounts for heat ventilation
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD stretched bar-type LCD displays with ultra-wide aspect ratio is perfect for catching people’s attention that’s a perfect alternative of traditional LED displays, Take solace in ITD’s Bar LCD Monitor when integrating it into a display as it will always captivate audiences and work to provide as an informative display for any application. The stretched LCD display is a powerful tool for advertising or as an information display that can be withoptional single SD card and USB port, ARM based player and single monitor with VGA, DVI, HDMI inputs integrated. ITD stretched bar type LCD display comes with standard 500nits or 1000nitsthat can be used in indoor/outdoorprojects that include, but are not limited to digital signage, restaurant displays, airport terminal signs, public transportation or places that would like to have a special screen for signage displays. The special bar LCD monitor is sturdy and fits well into many applications.




Stretched Bar LCD Display

Model Name

ITD43SDN1**

IP Rating

Optional


Configuration Options

Single LCD Monitor

Single Media Player

ARM Android Based RK3288(RK3368 optional)

1×VGA Input

Chipset: MSTAR

CPU: Quad-Core Cortex-A17 1.8GHz

1×DVI Input

Video Formats Supported: MP4、AVI、DAT、MPG、RM、RMVB、AVC、FLV

Chipset: N/A

1×HDMI Input

Memory: 1G/2G

1×DC 24V Input

Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE

File Formats Supported: FAT, FAT32, NTFS

HDD/SSD: 8G



1×HDMI



Picture Formats Supported: JPEG, BMP, GIF, PNG

1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot

1×USB 2.0



1×mini-SD slot





1×LAN



1×Audio Out

1×Audio Out



Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel

Screen Diagonal (Inch)

43”

Display Active Screen Size (mm)

1073.8(H)×201.3(V)

Aspect Ratio

TBA

Physical Resolution

1920×360

Maximum Resolution Supported

1080P

Colors

16.7M

Brightness (cd/m2)

500 (1000 Optional)

Contrast Ratio

1400:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime


Touch Panel

Touch Options

Tempered Glass

PCAP (Customized)

Optional

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power /Speakers

Power Indicator

Green LED

Power Input

External Power Supply, DC 24V, DC9-36V Optional

Power Consumption

Speakers

73W

Optional


Mechanical Dimension

Outline Dimension(mm)

1103.8×231.4


Order Information

43”Stretched LCD Monitor

ITD43SDN101

43”Stretched LCD with Single Media Player

ITD43SDN1A1

43”Stretched LCD with Android Media Player

ITD43SDN1E1

43”Stretched LCD Monitor 1000nits

ITD43SDN1HB01

43”Stretched LCD with Single Media Player 1000nits

ITD43SDN1HBA1

43”Stretched LCD with Android Media Player 1000nits

ITD43SDN1HBE1
