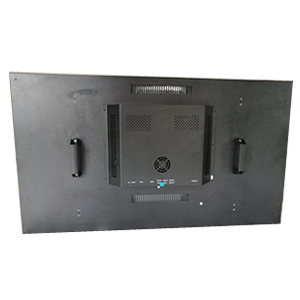

46 inch Zero-Bezel Video Wall Screen
BENEFITES
- Exceptional quality and commercial-grade reliability and performance
- Ultra-Slim, Energy-Efficient LED Backlight Technology
- All steel construction designed for harsh & public environments
- Patented the world¡¯s first true Zero-Bezel LCD
- Uniform brightness, stable image, superior visual performance, no flickering and fuzzy
- Ultra long lifetime with 80,000 hours, engineered for 7/24 mission-critical reliability
- Configured with different groups: 2¡Á2, 3¡Á3, 4¡Á4, 256pcs max. (Landscape or Portrait).
- Combining with ITD graphics processor & matrix supporting max. 256pcs of splicing LCD screens in one video wall
- Hardware architecture controlled by green control software with plug and play
OVERVIEW
ITD true zero-bezel high-quality LCD video walls deliver a new level of visual performance for ITD's patent awarded of LCD video wall solutions featuring the true zero bezels, most flexible mounting systems and slimmest installation depths, which are best-in-class. ITD's innovative LCD video wall solutions are specifically designed to deliver precise and brilliant visual messages in the world's most demanding environments--from control rooms to digital signage and architectural applications. This immersive, flexible video wall combines the ultra-thin profile zero bezel LCD with improvements in design, installation and service, which have been widely applied in retail showrooms, waiting rooms, production floors, churches, temples, corporate offices, theaters, parks, shopping malls, casino, hotel, bars and anywhere you would like to show advertisements, information, TV programs, sports and any media contents.


Zero-Bezel Video Wall Screen

Model Name

ITD46VWN1Z1

IP Rating

N/A


Input / Output



1 ¡Á DVI-D

1 ¡Á VGA

1 ¡Á HDMI

3 ¡Á AV Input

1 ¡Á AV Output

1 ¡Á DP Input

1 ¡Á DP Output £¨Optional£©


LCD Panel



Screen Diagonal (Inch/cm)

46¡±

Display Active Screen Size (cm)

1018.08(H)¡Á572.67(V)

Aspect Ratio

16:9

Physical Resolution

1980¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

500 (700 Optional)

Contrast Ratio

3500:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000Hours' Lifetime


Operation

Operating Temperature Range

0~50¡ãC

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Mounting Method



Wall Mounted

Floor Standing

Cabinet Floor Standing

Front Access Door Open Bracket


Power /Speakers

Power Indicator

Green LED

Power Input

Internal Power Supply AC100V~240V

Power Consumption

Speakers

38W

Optional


Order Information



46¡±500nits Zero-Bezel Video Wall Screen with Wall Mounted Brackets

ITD46VWN1Z1

46¡±700nits Zero-Bezel Video Wall Screen with Wall Mounted Brackets

ITD46VWN1Z2
