Products > Digital Signage > Freestanding Digital LCD Displays  >  55 inch Free Standing Digital Signage LCD Display

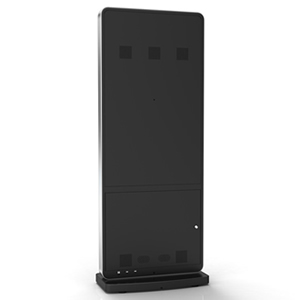

55 inch Free Standing Digital Signage LCD Display
BENEFITES
- Exceptional quality and commercial-grade reliability and performance
- Ultra-Slim, Energy-Efficient LED Backlight Technology
- All steel construction designed for harsh & public environments
- Timing, split screen, plug and play, playback supported
- Optional touchscreens like IR, PCAP, touch foil
- Tempered glass fitted on front for vandal proof
- Optional single media player, network media player integrated
- Optional portrait and landscape display screen integrated
- Pre-installed CMS management system for network version
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD free standing digital signage displays series is a truly dynamic medium that puts on a show engages with impact and communicates and conveys all manner of media in unique, branded and tailored style across display screens that project in ways that conventional media messaging just can¡¯t touch. Content is customized with text, graphics and video that shouts, schmoozes or just speaks spectacularly. ITD free standing digital signage displays incorporate media playing with optional single SD card and USB port, ARM based player and x86 based player integrated, a sleek design and commercial functionality into an affordable digital signage solution. Featuring an elegant design with zero-bezel and ultra-slim profile, the ITD free standing digital signage series is the ideal display solution as way finding, advertising/information display for digital signage applications in retail stores, restaurants, medical offices, healthcare, shopping mall, lobby, hotel and leisure environments..




Wall-Mounted Digital Signage LCD Display

Model Name

ITD55ADG1**

IP Rating

IP65 Front Panel Optional


Single Media Player Option

1 ¡ÁUSB 2.0, 1¡ÁSD Card Slot, 1¡ÁHDMI Input(Optional)

Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV

Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE

Picture Formats Supported: JPEG, BMP, GIF, PNG

File Formats Supported: FAT, FAT32, NTFS


PC Systems Options



ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel



Screen Diagonal (Inch/cm)

55¡±

Display Active Screen Size (cm)

1209.6(H)¡Á680.4(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

400

Contrast Ratio

1400:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime


Touch Panel Available for Network Version



Touch Options

IR, PCAP, Touch Foil

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

0~50¡ãC

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power /Speakers



Power Indicator

Green LED

Power Input

Internal Power Supply, AC 100V~240V

Power Consumption

Speakers

160W

2¡Á5W


Order Information



55¡±Free Standing Single Digital Signage

ITD55ADG1LA1

55¡±Free Standing Android Network Digital Signage

ITD55ADG1LE1

55¡±Free Standing Windows(J1900) Network Digital Signage

ITD55ADG1LJ1

55¡±Free Standing Windows(Intel i3) Network Digital Signage

ITD55ADG1LC1
