55 inch Full IP65/IP66 Waterproof Touchscreen Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions

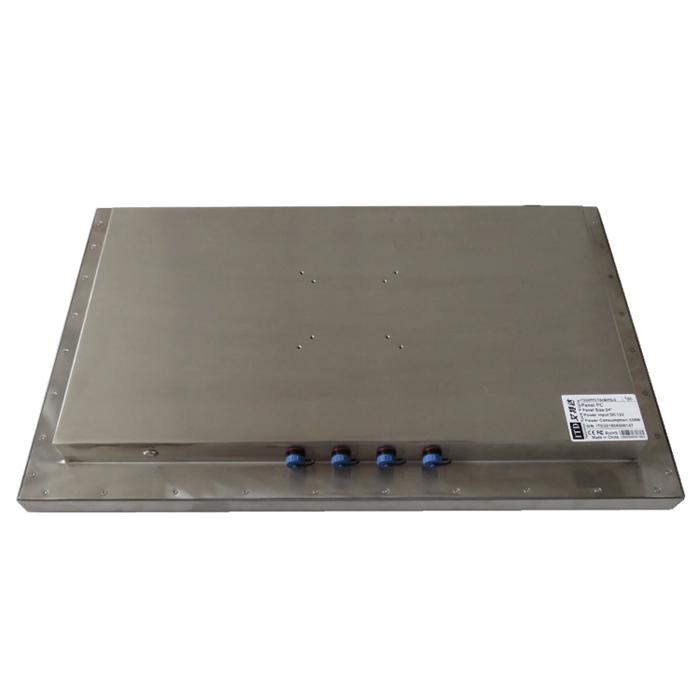

- Solid steel and stainless steel or aluminum alloy enclosures
- IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like IR and PCAP
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial full IP65 touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP65 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. ITD full IP65 touch panel PCs come with industrial -grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI applications.



Full IP65/IP66 Touchscreen Panel PC

Model Name

ITD55PPCG1IP**

IP Rating

IP65/IP66(IP67 optional)


PC Systems Options
ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core?i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel?Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM¡Á1(Intel J4125/J6412) 2¡ÁDDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ¡Á2 (8th~12th Gen.)
HDD/SSD:?Default to?16G, Max. 128G Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 (not available for J1900) Default to 64GB SSD		 Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 Default to 64GB SSD
1¡ÁHDMI?Output; COM optional 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB, Max. 4¡ÁUSB, 1¡ÁUSB OTG (optional) 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6
1¡ÁTF Card Slot(Supports 8~128G) 2¡ÁCOM, Max. 6 2¡ÁCOM, Max. 6
1¡ÁLAN 1¡ÁLAN, Dual LAN optional 1¡ÁLAN, Dual LAN optional
1¡ÁAudio Out 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412)		 Windows 7/10, Linux
Windows 11(available for 7th gen. or above)

Default IP65 Connectors:  2¡ÁUSB 2.0, 1¡ÁLAN, 1¡ÁAC 110~240V


LCD Panel

Screen Diagonal (Inch/cm)

55¡±

Display Active Screen Size (mm)

1209.6(H) ¡Á680.4(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

450nits

Contrast Ratio

1400:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED backlight with 50000 hours¡¯lifetime


Touch Panel

Touch Options

IR, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

0~50¡ãC

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

AC 110~240V

Power Consumption

170W


Order Information

55¡±Full IP65/IP66 Panel PC with IR Touch, J1900

ITD55PPCT1IPJ1

55¡±Full IP65/IP66 Panel PC with PCAP Touch, J1900

ITD55PPCT5IPJ1

55¡±Full IP65/IP66 Panel PC with Tempered Glass, J1900

ITD55PPCG1IPJ1

55¡±Full IP65/IP66 Panel PC with IR Touch, i3

ITD55PPCT1IPI3

55¡±Full IP65/IP66 Panel PC with PCAP Touch, i3

ITD55PPCT5IPI3

55¡±Full IP65 /IP66Panel PC with Tempered Glass, i3

ITD55PPCG1IPI3

55¡±Full IP65/IP66 Panel PC with IR Touch, i5

ITD55PPCT1IPI5

55¡±Full IP65/IP6,6 Panel PC with PC,AP To,uch, ,,i5

ITD55PPCT5IPI5

55¡±Full IP65 /IP66Panel PC with Tempered Glass, i5

ITD55PPCG1IPI5
