Products > Sunlight Readable LCD > Sunlight Readable Full IP65 IP66 LCD Monitor  >  55 inch High Brightness Full IP65/IP66 Stainless Steel LCD Monitor

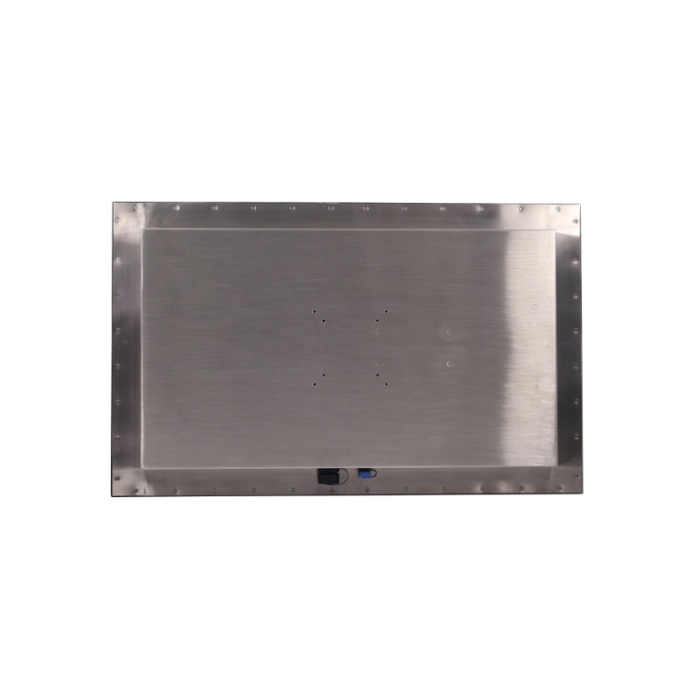

55 inch High Brightness Full IP65/IP66 Stainless Steel LCD Monitor
BENEFITES
- Exceptional quality and highly engineered industrial heavy duty monitors
- Optional touchscreens like PCAP and infrared
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65, IP66 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures with cooling fin
- IP66 sealed, Full IP66 I/O connectors protect from any particles, water, and corrosive agents
- High brightness 1000nits, optical bonding optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD full IP66 sunlight readable LCD touchscreen displays are fully-integrated units that combine high brightness TFT LCD, touch screen, waterproof and dustproof, fully sealed stainless steel chassis or aluminum alloy chassis and I/O with IP65/ NEMA 4 Ingress protection rating designed to be tough and rugged. The enclosure features easy-to clean stainless steel/aluminum alloy construction that is corrosion resistant. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. They are built for demanding applications with high industrial requirement, such as outdoor kiosk, beverage, marine, oil/gas, pharmaceutical and tobacco industries for operator control and monitoring for semi-outdoor and outdoor applications.



Full IP65/IP66
High Brightness Touchscreen Monitor

Model Name

ITD55CMG1IPHBS2

IP Rating

Full IP65/IP66(IP67 optional)


LCD Panel

Screen Diagonal (Inch/cm)

55¡±

Display Active Screen Size (mm)

1213.6(H) ¡Á684.4(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

1000nits

Contrast Ratio

1400:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

PCAP, Infrared

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Default Waterproof I/O

Video Input

1 ¡Á HDMI

Audio

Optional

Touch Connector

1 ¡Á USB(Optional)

Power Connector

1 ¡Á AC 110-240V input (DC9-36V optional)


Operation



Operating Temperature Range

0~50¡ãC

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

N/A

Power Input

AC 110-240V

Power Consumption

260W


Order Information

55¡±1000nits Full IP65/IP66 LCD Monitor with IR Touch, Aluminum Housing

ITD55CMT2IPHBA1

55¡±1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing

ITD55CMT5IPHBA1

55¡±1000nits Full IP65/IP66 LCD Monitor with IR Touch, Stainless Steel Housing

ITD55CMT2IPHBS1

55¡±1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing

ITD55CMT5IPHBS1

55¡±1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing

ITD55CMG1IPHBA1

55¡±1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing

ITD55CMG1IPHBS1

Next£º65 inch High Brightness Full IP65/IP66 Stainless Steel LCD Monitor
Previous£º49 inch High Brightness Full IP65/IP66 Stainless Steel LCD Monitor
