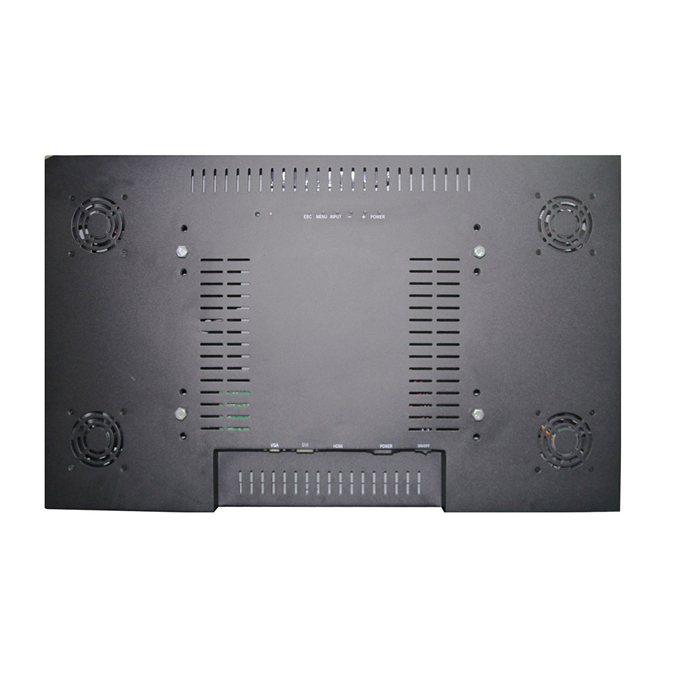

55 inch Open Frame High Bright Sunlight Readable LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrial environments
-Easy-to-install cabinet and open frame rear-mount display
-Multiple mounting options (75/100mm VESA mount and side brackets)
-High brightness from 1000nits to 1500nits optional
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial open frame sunlight readable LCD displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application.  ITD open frame LCD monitors are packaged in a steel enclosure and durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder for indoor, semi-outdoor and outdoor applications.




Open Frame High Brightness LCD
Monitor

Model Name

ITD55OFN1HB02

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch/cm)

55

Display Active Screen Size (mm)

1209.6(H) 680.4(V)

Aspect Ratio

16:9

Physical Resolution

19201080

Maximum Resolution Supported

19201080

Colors

16.7M

Brightness (cd/m2)

1500 cd/m2

Contrast Ratio

4000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel

Touch Options

Resistive, IR, PCAP, SAW, Touch Foil

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB


Operation

Operating Temperature Range

0~50C

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

Internal Power Supply, AC100V~240V

Power Consumption

290W


Order Information

551500nits Open Frame LCD Monitor with Resistive Touch

ITD55OFT1HB01

551500nits Open Frame LCD Monitor with IR Touch

ITD55OFT2HB01

551500nits Open Frame LCD Monitor with Touch Foil

ITD55OFT7HB01

551500nits Open Frame LCD Monitor with PCAP Touch

ITD55OFT5HB01

551500nits Open Frame LCD Monitor with Tempered Glass

ITD55OFG1HB01

552000nits Open Frame LCD Monitor with Resistive Touch

ITD55OFT1HB03

552000nits Open Frame LCD Monitor with IR Touch

ITD55OFT2HB03

552000nits Open Frame LCD Monitor with Touch Foil

ITD55OFT7HB03

552000nits Open Frame LCD Monitor with PCAP Touch

ITD55OFT5HB03

552000nits Open Frame LCD Monitor with Tempered Glass

ITD55OFG1HB03
