Products > Digital Signage > Wall Mounted Digital Posters  >  55 inch Wall-Mounted Digital Signage LCD Display

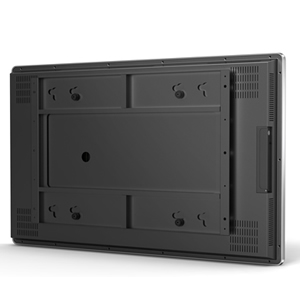

55 inch Wall-Mounted Digital Signage LCD Display
BENEFITES
- Exceptional quality and commercial-grade reliability and performance
- Ultra-Slim, Energy-Efficient LED Backlight Technology
- All steel construction designed for harsh & public environments
- Timing, split screen, plug and play, playback supported
- Optional touchscreens like IR, PCAP, touch foil
- Tempered glass fitted on front for vandal proof
- Landscape and portrait flexibility
- Optional single media player, network media player integrated
- Pre-installed CMS management system for network version
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD wall mounted digital signage displays series is a truly dynamic medium that puts on a show, engages with impact and communicates and conveys all manner of media in unique, branded and tailored style across display screens that project in ways that conventional media messaging just cant touch. Content is customized with text, graphics and video that shouts, schmoozes or just speaks spectacularly. ITD wall-mounted digital signage displays incorporate media playing with optional single SD card and USB port, ARM based player and x86 based player integrated, a sleek design and commercial functionality into an affordable digital signage solution. Featuring an elegant design with zero-bezel and ultra-slim profile, the ITD wall-mounted digital signage series is the ideal display solution for digital signage applications in retail stores, restaurants, medical offices, healthcare, corporate meeting areas, education, hotel and leisure environments..




Wall-Mounted Digital Signage LCD Display

Model Name

ITD55ADG1**

IP Rating

IP65 Front Panel Optional


Single Media Player Option



1 USB 2.0, 1SD Card Slot, 1HDMI Input(Optional)

Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV

Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE

Picture Formats Supported: JPEG, BMP, GIF, PNG

File Formats Supported: FAT, FAT32, NTFS


PC Systems Options



ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1HDMI

1VGA, 1HDMI

1VGA, 1HDMI

1USB 2.0

2USB 2.0, 2USB3.0

2USB 2.0, 2USB3.0

1mini-SD slot

1COM(RS232/422/485)

1COM(RS232/422/485)

1LAN

1LAN

1LAN

1Audio Out

1Audio Out, 1MIC In

1Audio Out, 1MIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel



Screen Diagonal (Inch)

55

Display Active Screen Size (cm)

1209.6(H)680.4(V)

Aspect Ratio

16:9

Physical Resolution

19201080

Maximum Resolution Supported

19201080

Colors

16.7M

Brightness (cd/m2)

400

Contrast Ratio

1400:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000Hours' Lifetime


Touch Panel Available for Network Version



Touch Options

IR, PCAP, Touch Foil

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

0~50C

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power /Speakers



Power Indicator

Green LED

Power Input

Internal Power Supply, AC 100V~240V

Power Consumption

Speakers

160W

25W


Order Information



55Wall Mounted Single Digital Signage

ITD55ADG1A1

55Wall Mounted Android Network Digital Signage

ITD55ADG1BE1

55Wall Mounted Windows(J1900) Network Digital Signage

ITD55ADG1BJ1

55Wall Mounted Windows(Intel i3) Network Digital Signage

ITD55ADG1BC1
