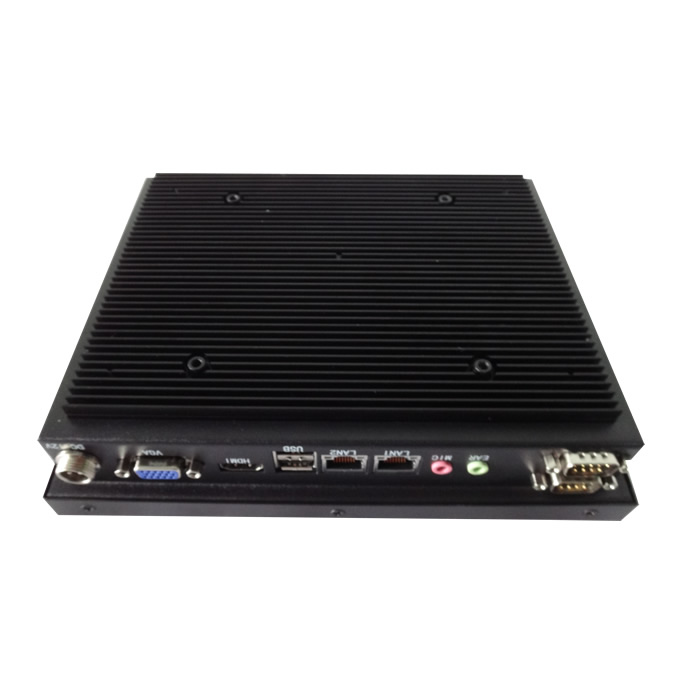

Chassis Panel PC

Model Name

ITD06PPCG1L**

IP Rating

IP65 Front Panel Optional

PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1×HDMI

1×VGA, 1×HDMI

1×VGA, 1×HDMI

1×USB 2.0

2×USB 2.0, 2×USB3.0

2×USB 2.0, 2×USB3.0

1×mini-SD slot

1×COM(RS232/422/485)

1×COM(RS232/422/485)

1×LAN

1×LAN

1×LAN

1×Audio Out

1×Audio Out, 1×MIC In

1×Audio Out, 1×MIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe

LCD Panel

Screen Diagonal (Inch)

6.5”

Display Active Screen Size (cm)

132.48(H)×99.36(V)

Aspect Ratio

4:3

Physical Resolution

640×480

Maximum Resolution Supported

1920×1080

Colors

262K

Brightness (cd/m2)

400

Contrast Ratio

600:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime

Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

21.875W

Order Information

6.5”Chassis Panel PC with Resistive Touch, J1900

ITD06PPCT1LJ1

6.5”Chassis Panel PC with PCAP Touch, J1900

ITD06PPCT5LJ1

6.5”Chassis Panel PC with IR Touch, J1900

ITD06PPCT2LJ1

6.5”Chassis Panel PC with Tempered Glass, J1900

ITD06PPCG1LJ1

6.5”Chassis Panel PC with Resistive Touch, i5

ITD06PPCT1LI5

6.5”Chassis Panel PC with PCAP Touch, i5

ITD06PPCT5LI5

6.5”Chassis Panel PC with IR Touch, i5

ITD06PPCT2LJ1

6.5”Chassis Panel PC with Tempered Glass, i5

ITD06PPCG1LI5
