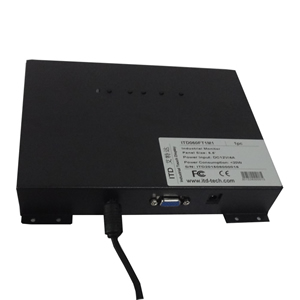

6.5 inch Open Frame LCD Monitor

BENEFITES
- Exceptional quality and highly engineered industrial monitors
- Optional touchscreens like resistive, IR, SAW, PCAP
- All steel construction designed for harsh and industrial environments
- Easy-to-install cabinet and open frame rear-mount display
- Multiple mounting options (75/100mm VESA mount and side brackets)
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project



OVERVIEW
ITD industrial open frame displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application.  ITD open frame LCD monitors are packaged in a steel enclosure and durable glass front surface provide the durability needed for demanding industrial environments. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.




Open Frame LCD
Monitor

Model Name

ITD06OFN1M1

IP Rating

N/A


LCD Panel



Screen Diagonal (Inch/cm)

 6.5

Display Active Screen Size (mm)

132.48(H) 99.36(V)

Aspect Ratio

4:3

Physical Resolution

640480

Maximum Resolution Supported

19201080

Colors

262k

Brightness (cd/m2)

450nits

Contrast Ratio

800:1

View Angels

70/70/60/60

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel



Touch Options

Resistive

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB

Power Connector

1 DC2.0


Operation

Operating Temperature Range

-10~60C (-20~70C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

10W


Order Information



6.5Open Frame LCD Monitor with Resistive Touch

ITD06OFT1M1

6.5Open Frame LCD Monitor with IR Touch

ITD06OFT2M1
