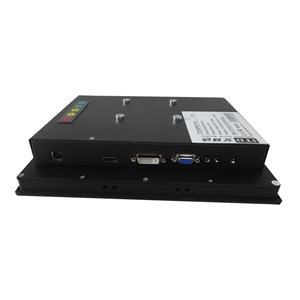

6.5 inch Panel Mount LCD Monitor

Products > Industrial Touchscreen LCD > Panel/Rack Mount LCD Monitor > 6.5 inch Panel Mount LCD Monitor

BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install embedded/panel mounting with clamps
-Robust design with aluminum NEMA 4/ IP65 front panel
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial panel mountLCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 6mm thickness and highly-durable glass front surface provide the durability needed for demanding industrial environments.Industrial panel mountmonitors come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, industrial analog & digital driver board, low power consumption, and scratch-resistant capabilitiesare idealfor system integrators,kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine applications.

Panel Mount LCD Monitor
Model Name	ITD06PMN101
IP Rating	N/A
LCD Panel
Screen Diagonal (Inch)	6.5”
Display Active Screen Size (cm)	132.48(H)×99.36(V)
Aspect Ratio	4:3
Physical Resolution	640×480
Maximum Resolution Supported	1920×1080
Colors	262K
Brightness (cd/m2)	400
Contrast Ratio	600:1
View Angels	80/80/70/70
Backlight/Backlight Lifetime	LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options	Resistive, IR, PCAP, SAW
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input	1 × VGA
	1 × DVI-I
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × DC2.0
Operation
Operating Temperature Range	-10~60°C (-20~70°COptional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 12V
Power Consumption	9.875W
Order Information
6.5”Panel Mount LCD Monitor with Resistive Touch	ITD06PMT101
6.5”Panel Mount LCD Monitor with IR Touch	ITD06PMT201
6.5”Panel Mount LCD Monitor with SAW Touch	ITD06PMT301
6.5”Panel Mount LCD Monitor with PCAP Touch	ITD06PMT501
6.5”Panel Mount LCD Monitor with Tempered Glass	ITD06PMG101
