Products > Sunlight Readable LCD > High Bright Sunlight Readable LCD Monitor Chassis Closed Frame  >  65 inch Chassis High Bright Sunlight Readable LCD Monitor

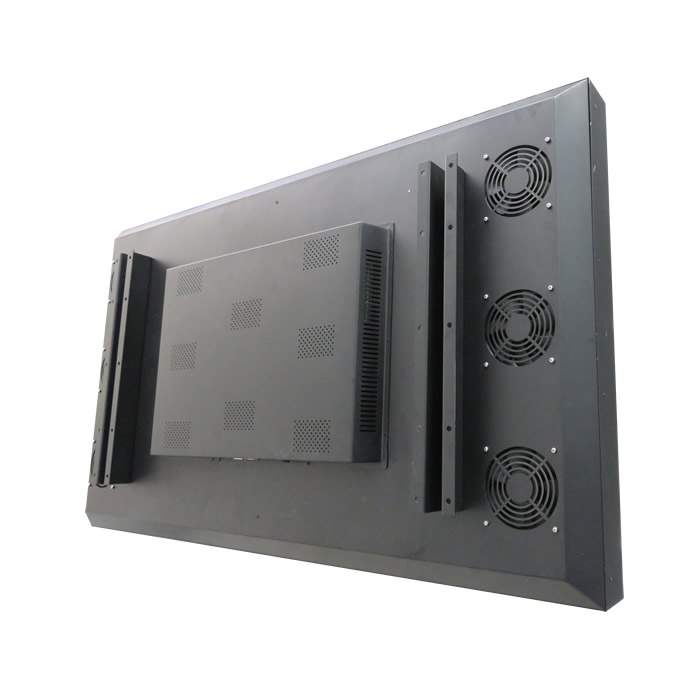

65 inch Chassis High Bright Sunlight Readable LCD Monitor
BENEFITES
-Exceptional quality and highly engineered sunlight readable LCD monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrial environments
-Easy-to-install cabinet and chassis VESA-mount display
-High brightness from 1000nits to 1500nits optional
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassis sunlight readable LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial/commercial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. High brightness chassis LCD monitors are ideal for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminals and industrial machinery builder for indoor, semi-outdoor or outdoor applications. ITD full-range selection is provided in screen sizes from 6.5~84.




Chassis High Brightness LCD
Monitor

Model Name

ITD65CMN1HB01

IP Rating

IP65 Front Optional


LCD Panel

Screen Diagonal (Inch/cm)

65

Display Active Screen Size (mm)

1428.48(H) 803.52(V)

Aspect Ratio

16:9

Physical Resolution

19201080

Maximum Resolution Supported

19201080

Colors

16.7M

Brightness (cd/m2)

1500 cd/m2

Contrast Ratio

5000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB


Operation

Operating Temperature Range

0~50C (-10~60C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

Internal Power Supply, AC100V~240V

Power Consumption

500W


Order Information

651500nits Chassis LCD Monitor with Resistive Touch

ITD65CMT1HB01

651500nits Chassis LCD Monitor with IR Touch

ITD65CMT2HB01

651500nits Chassis LCD Monitor with Touch Foil

ITD65CMT7HB01

651500nits Chassis LCD Monitor with PCAP Touch

ITD65CMT5HB01

651500nits Chassis LCD Monitor with Tempered Glass

ITD65CMG1HB01

652000nits Chassis LCD Monitor with Resistive Touch

ITD65CMT1HB03

652000nits Chassis LCD Monitor with IR Touch

ITD65CMT2HB03

652000nits Chassis LCD Monitor with Touch Foil

ITD65CMT7HB03

652000nits Chassis LCD Monitor with PCAP Touch

ITD65CMT5HB03

652000nits Chassis LCD Monitor with Tempered Glass

ITD65CMG1HB03
