7 inch IP69K Stainless Touchscreen LCD Monitor

Products > Rugged IP66/IP67/IP69K Stainless Displays > IP69K Touchscreen Monitor > 7 inch IP69K Stainless Touchscreen LCD Monitor

BENEFITES
- Built to withstand harsh industrial environments, including exposure to high-pressure, high-temperature water jets, dust, and other contaminants. This durability ensures longevity and reliable operation even in challenging conditions.
- The smooth, stainless steel construction combined with the flat touchscreen interface allows for easy cleaning and disinfection, which is essential in industries where hygiene is critical.
- IP69K rating ensures that the monitors can withstand high-pressure cleaning with hot water and cleaning agents without damage.
- Designed and tested to meet industry standards and regulations for safety, hygiene, and performance, ensuring that they meet the requirements of specific applications and industries.

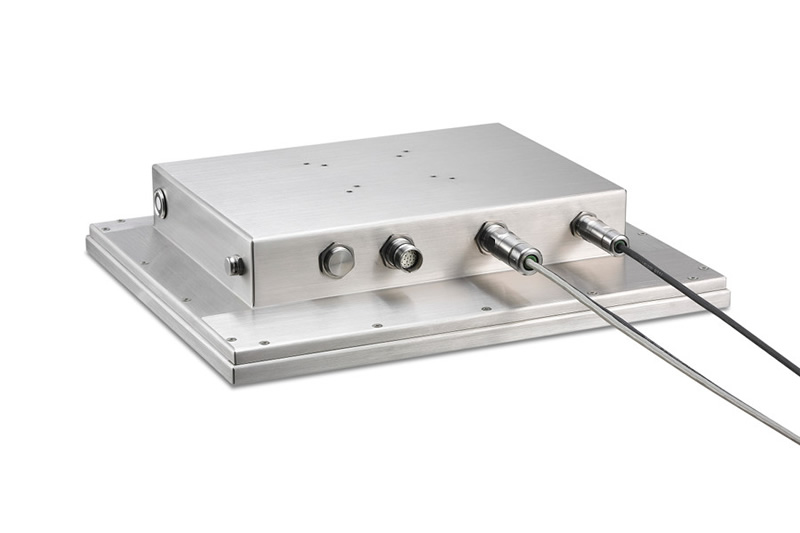

- M12 Waterproof I/O connectors protected from any particles, water, and corrosive agents.
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD’s IP69K Touchscreen Monitors are built to withstand the harshest environments. The IP69K rating ensures complete protection against dust, water, and high-pressure jets, making it ideal for industries such as food processing, pharmaceuticals, and automotive manufacturing where hygiene and resilience are paramount. Featuring a rugged design and sealed construction, this touchscreen monitor offers unparalleled reliability even in the most demanding conditions. Its intuitive touch interface allows for seamless operation, facilitating efficient workflow and enhancing productivity on the factory floor.

IP69K Touchscreen Monitor
Model Name	ITD07CMx1IPS1-69K
IP Rating	IP69K
LCD Panel
Screen Diagonal (Inch/cm)	7”
Display Active Screen Size (mm)	154.214(H)×85.92(V)mm
Aspect Ratio	16:9
Physical Resolution	1024×600
Maximum Resolution Supported	1920×1080
Colors	262K/16.7M
Brightness (cd/m2)	500nits (1000nits optional)
Contrast Ratio	800:1
View Angels	80/80/60/70
Backlight/Backlight Lifetime	LED Backlight with 30000 Hours’ Lifetime
Touch Panel
Touch Options	Resistive, PCAP
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Default Waterproof Input / Output
HDMI Output	1 × HDMI input
Touch Port	1 × USB
Power Port	1 × DC2.0
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90% Non-Condensing
24/7/365 Use	Supported
Power
Power Indicator	N/A
Power Input	DC 12V (DC9~36V input optional)
Power Consumption	6W
Order Information
7”IP69K Stainless Steel LCD Monitor with Resistive Touch	ITD07CMT1IPS1-69K
7”IP69K Stainless Steel LCD Monitor with PCAP Touch	ITD07CMT5IPS1-69K
7”IP69K Stainless Steel LCD Monitor with Tempered Glass No Touch	ITD07CMG1IPS1-69K
7”IP69K Stainless Steel LCD Monitor with Resistive Touch, 1000nits	ITD07CMT1HBIPS2-69K
7”IP69K Stainless Steel LCD Monitor with PCAP Touch. 1000nits	ITD07CMT5HBIPS2-69K
7”IP69K Stainless Steel LCD Monitor with Tempered Glass No Touch, 1000nits	ITD07CMG1HBIPS2-69K
