7 inch Open Frame High Bright Sunlight Readable Panel PC
BENEFITES
- Exceptional quality and highly engineered sunlight readable industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- All steel construction designed for harsh & industrial environments
- Easy-to-install side brackets or VESA(75/100mm) wall mounting
- Optional touchscreens like resistive, IR, SAW, PCAP
- High brightness 1000nits optical bonding optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial open frame sunlight readable panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD open frame panel PCs cater to those who seek to further customize the appearance of their application and come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI for indoor, semi-outdoor or outdoor applications.



Open Frame High Brightness Panel PC

Model Name

ITD07PPCG1HBF**

IP Rating

N/A


PC Systems Options
ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core?i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel?Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM¡Á1(Intel J4125/J6412) 2¡ÁDDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ¡Á2 (8th~12th Gen.)
HDD/SSD:?Default to?16G, Max. 128G Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 (not available for J1900) Default to 64GB SSD 		Storage: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2 Default to 64GB SSD

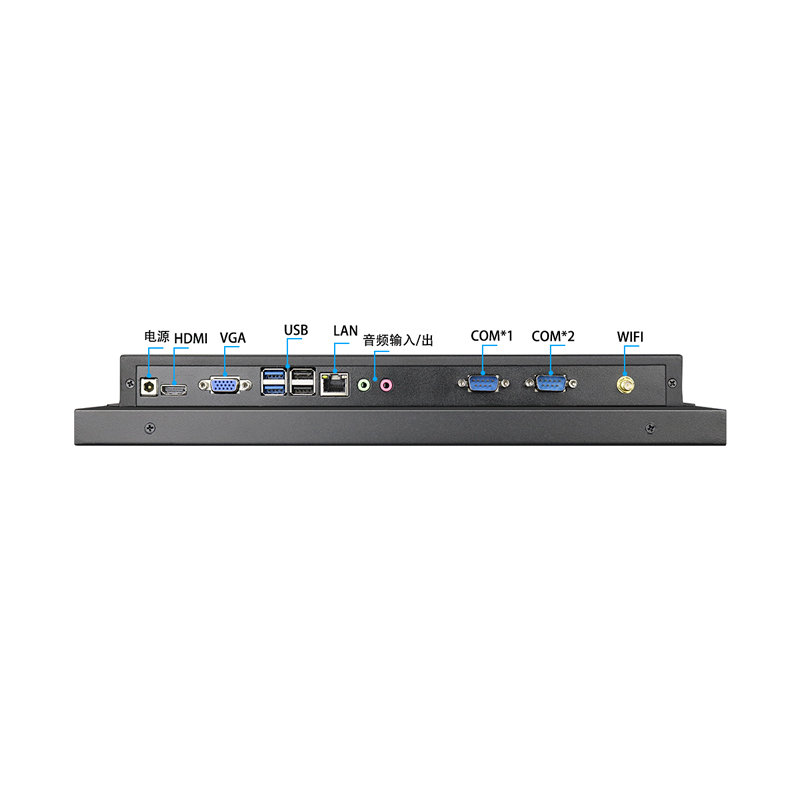

1¡ÁHDMI?Output; COM optional 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB, Max. 4¡ÁUSB, 1¡ÁUSB OTG (optional) 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6 2¡ÁUSB 2.0, 2¡ÁUSB3.0, Max. 6
1¡ÁTF Card Slot(Supports 8~128G) 2¡ÁCOM, Max. 6 2¡ÁCOM, Max. 6
1¡ÁLAN 1¡ÁLAN, Dual LAN optional 1¡ÁLAN, Dual LAN optional
1¡ÁAudio Out 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In 1¡ÁRealtek ALC662 , 1¡ÁLine-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412) 		Windows 7/10, Linux
Windows 11(available for 7th gen. or above)


LCD Panel

Screen Diagonal (Inch/cm)

7¡±

Display Active Screen Size (mm)

154.214(H)¡Á85.92(V)

Aspect Ratio

16:9

Physical Resolution

1024¡Á600

Maximum Resolution Supported

1920¡Á1080

Colors

262K/16.7M

Brightness (cd/m2)

1000

Contrast Ratio

800:1

View Angels

75/75/70/75

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime


Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V (9-36V optional)

Power Consumption

20W


Order Information

7¡± 1000nits Open Frame Panel PC with Resistive Touch, Android RK3288

ITD07PPCT1HBFE2

7¡± 1000nits Open Frame Panel PC with PCAP Touch, Android RK3288

ITD07PPCT5HBFE2

7¡± 1000nits Open Frame Panel PC with Tempered Glass, Android RK3288

ITD07PPCG1HBFE2

7¡± 1000nits Open Frame Panel PC with Resistive Touch, J1900

ITD07PPCT1HBFJ2

7¡± 1000nits Open Frame Panel PC with PCAP Touch, J1900

ITD07PPCT5HBFJ2

7¡± 1000nits Open Frame Panel PC with Tempered Glass, J1900

  ITD07PPCG1HBFJ2

7¡± 1000nits Open Frame Panel PC with Resistive Touch, i3

ITD07PPCT1HBFI3

7¡± 1000nits Open Frame Panel PC with PCAP Touch, i3

ITD07PPCT5HBFI3

7¡± 1000nits Open Frame Panel PC with Tempered Glass, i3

ITD07PPCG1HBFI3

7¡± 1000nits Open Frame Panel PC with Resistive Touch, i5

ITD07PPCT1HBFI5

7¡± 1000nits Open Frame Panel PC with PCAP Touch, i5

ITD07PPCT5HBFI5

7¡± 1000nits Open Frame Panel PC with Tempered Glass, i5

ITD07PPCG1HBFI5

7¡± 1000nits Open Frame Panel PC with Resistive Touch, i7

ITD07PPCT1HBFI7

7¡± 1000nits Open Frame Panel PC with PCAP Touch, i7

ITD07PPCT5HBFI7

7¡± 1000nits Open Frame Panel PC with Tempered Glass, i7

ITD07PPCG1HBFI7
