Products > Industrial Touchscreen LCD > Open Frame LCD Monitor  >  70 inch Open Frame LCD Monitor

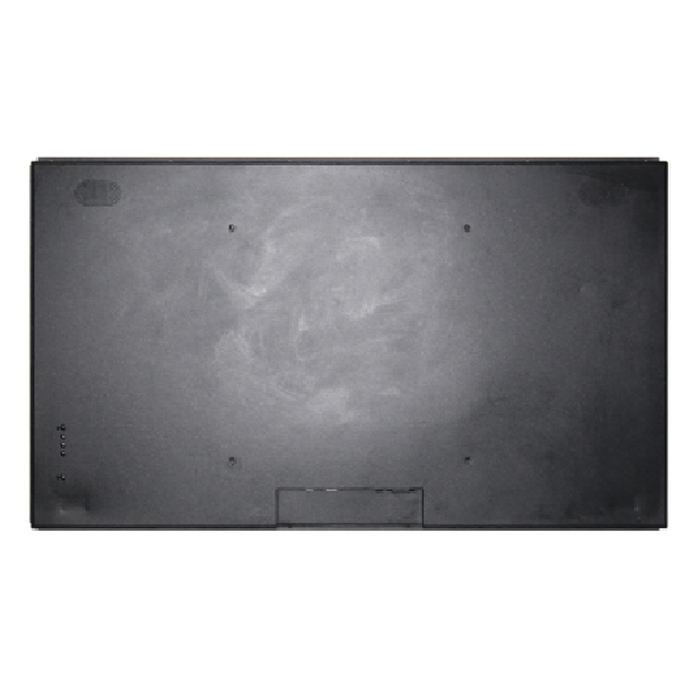

70 inch Open Frame LCD Monitor
BENEFITES
- Exceptional quality and highly engineered industrial monitors
- Optional touchscreens like IR,PCAP
- All steel construction designed for harsh and industrial environments
- Easy-to-install cabinet and open frame rear-mount display
- Multiple mounting options (75/100mm VESA mount and side brackets)
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project
ITD industrial open frame displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application.  ITD open frame LCD monitors are packaged in a steel enclosure and durable glass front surface provide the durability needed for demanding industrial environments. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.



Open Frame LCD
Monitor

Model Name

ITD70OFN1M1

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch/cm)

 70

Display Active Screen Size (mm)

1538.88(W) x 865.62(H)mm

Aspect Ratio

16:9

Physical Resolution

19201080

Maximum Resolution Supported

19201080

Colors

16.7M

Brightness (cd/m2)

400nits

Contrast Ratio

4000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel

Touch Options

IR, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB

Power Connector

1 DC2.0


Operation

Operating Temperature Range

-10~60C (-20~70C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

280W


Order Information

70 Open Frame LCD Monitor with Tempered Glass

ITD70OFG1M1

70 Open Frame LCD Monitor with IR Touch

70 Open Frame Monitor LCD Monitor with AR Glass

ITD70OFT2M1

ITD70OFG2M1
