7inch Flat Bezel Industrial Panel PC

Products > Custom Touchscreen Display Solutions > Panel PCs with RFID/NFC/QR/Fingerprint Integrated > 7inch Flat Bezel Industrial Panel PC

BENEFITES
-Exceptional quality and highly engineered industrial panel computer
-High Performance Processor, Graphics, Memory and Power
-Edge to edge design with true flat surface, easy to clean
-Optional touchscreens like resistive, PCAP
-All steel construction designed for harsh and industrial environments
-Easy-to-install embedded/panel mounting with clamps
-Robust design with aluminum NEMA 4/ IP65 front panel
-Flexible, reliable, and ruggedized for open platform HMI/SCADA
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mount panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.

Flat Bezel Industrial Panel PC

Model Name

ITD07PPCG1X**

IP Rating

IP65 Front Panel

PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional)	X86 Based	X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel Celeron J1900/J4125/J6412 2.0GHz	Intel Core i3/i5/i7 (4th~12th Generation optional)
Chipset: Rockchip	Chipset: Intel Bay Trail SoC	Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional	Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412)	2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.)
HDD/SSD: Default to?16G, Max. 128G	Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD	Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD

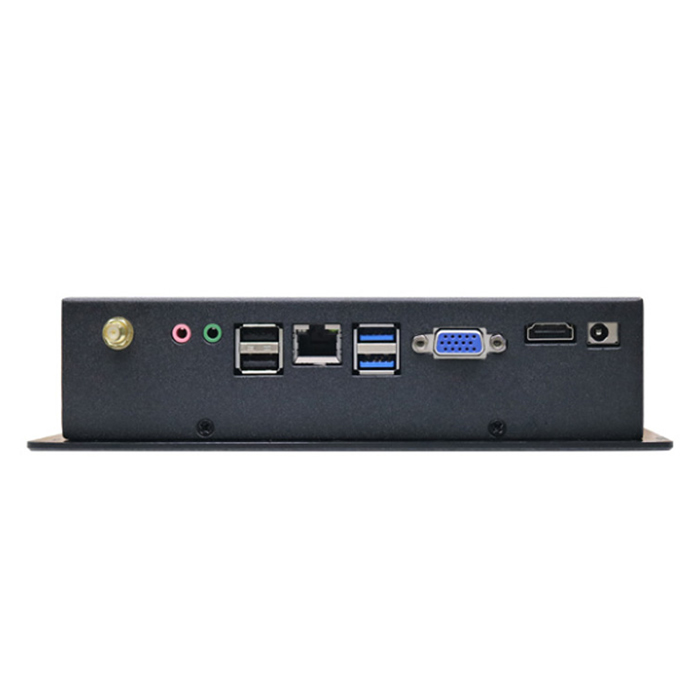

1×HDMI Output; COM optional	1×VGA, 1×HDMI	1×VGA, 1×HDMI
2×USB, Max. 4×USB, 1×USB OTG (optional)	2×USB 2.0, 2×USB3.0, Max. 6	2×USB 2.0, 2×USB3.0, Max. 6
1×TF Card Slot(Supports 8~128G)	2×COM, Max. 6	2×COM, Max. 6
1×LAN	1×LAN, Dual LAN optional	1×LAN, Dual LAN optional
1×Audio Out	1×Realtek ALC662 , 1×Line-Out/MIC In	1×Realtek ALC662 , 1×Line-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions	Windows 7/10, Linux Windows 11(available for J4125/J6412)	Windows 7/10, Linux Windows 11(available for 7th gen. or above)

LCD Panel

Screen Diagonal (Inch)

7”

Display Active Screen Size (cm)

154.214(H)×85.92(V)

Aspect Ratio

16:9

Physical Resolution

1024×600

Maximum Resolution Supported

1920×1080

Colors

262K/16.7M

Brightness (cd/m2)

400

Contrast Ratio

800:1

View Angels

75/75/70/75

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime

Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

15W

Order Information

7”Panel Mount Panel PC with Resistive Touch, J1900

ITD07PPCT1XJ1

7”Panel Mount Panel PC with PCAP Touch, J1900

ITD07PPCT5XJ1

7”Panel Mount Panel PC with Tempered Glass, J1900

ITD07PPCG1XJ1

7”Panel Mount Panel PC with Resistive Touch, i5

ITD07PPCT1XI5

7”Panel Mount Panel PC with PCAP Touch, i5

ITD07PPCT5XI5

7”Panel Mount Panel PC with Tempered Glass, i5

ITD07PPCG1XI5
