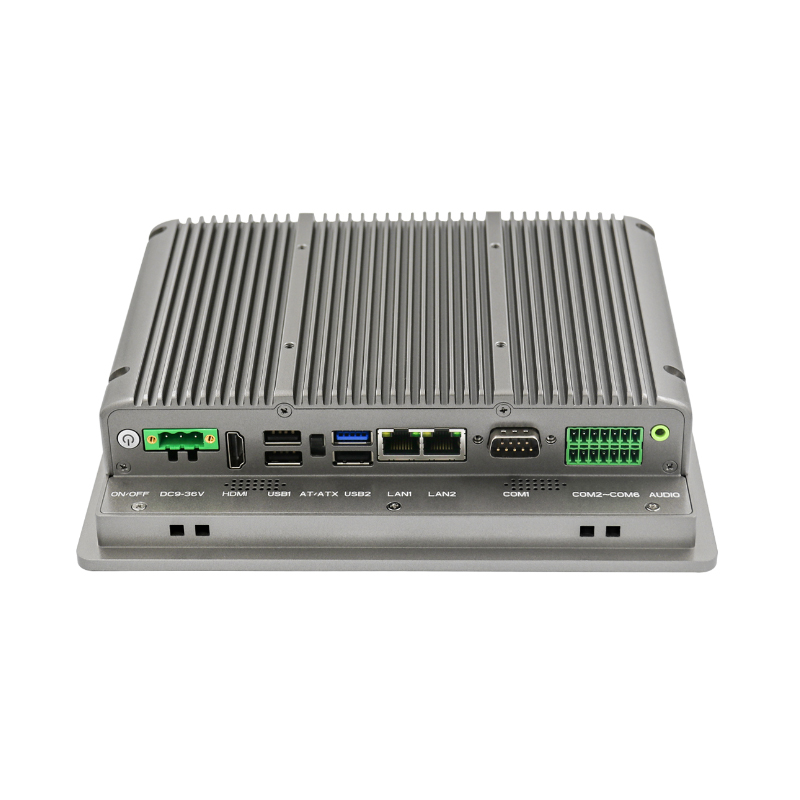

Industrial HMI Touch Panel PC

Model Name

ITD08PPCT5B-xxxx

IP Rating

IP65 Front Panel

PC Systems Options

X86 Windows Based
CPU: Intel? Celeron J1900 2.0GHz
Chipset: Intel Bay Trail SoC
Memory: DDR3L SODIMM SKU, Up to 8GB
Storage: 1 × mSATA, 1 ×SATA
1 × HDMI, 2 × GbE RJ45 Intel? i211
3 × USB2.0 , 1 × USB3.0
1 × DB-9 COM1 RS-232
3 × 3 -w ire COM 2 & COM 3&COM4，RS-232with terminal block
2 × 3 -wire COM 5& COM 6 R S-485 with terminal block1×LAN
1 × Audio Out, 1×Line Out, 2 x 8Ω 1W Audio AMPout
1 × A T/ATX switch, 1 x 8 bit GPIO (Optional)
Expansion: Mini-PCIe x1 full size with SIM Card for 3G/4G

X86 Windows Based

CPU: Intel? Celeron J1900 2.0GHz

Chipset: Intel SoC

Memory: DDR3L SODIMM SKU, Up to 8GB

Storage: 1 × mSATA, 1  ×SATA

1 × HDMI, 2 × GbE RJ45 Intel? i211

3 × USB2.0 , 1 × USB3.0

1 × DB-9 COM1 RS-232

3 × 3 -w ire COM 2 & COM 3&COM4，RS-232with terminal block

2 × 3 -wire COM 5& COM 6 R S-485 with terminal block1×LAN

1 × Audio Out, 1×Line Out, 2 x 8Ω 1W Audio AMPout
1 × A T/ATX switch, 1 x 8 bit GPIO (Optional)
Expansion: Mini-PCIe x1 full size with SIM Card for 3G/4G

LCD Panel

Screen Diagonal (Inch)

8”

Display Active Screen Size (cm)

162.048(H)×121.536(V)

Aspect Ratio

4:3

Physical Resolution

1024×768

Maximum Resolution Supported

1920×1080

Colors

262K/16.7M

Brightness (cd/m2)

300nits

Contrast Ratio

800:1

View Angels

80/80/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000Hours’Lifetime

Touch Panel

Touch Options

Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel

Touch Drivers

Windows 7/8/10, Linux, Android, Mac

Operation

Operating Temperature Range

-20~60°C

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V with 3-pin terminal block

Power Consumption

15W

Order Information


8”Industrial HMI PCAP Touch Panel PC with J1900

ITD08PPCT5B-J1900

8”Industrial HMI resistive Touch Panel PC with J1900

ITD08PPCT1B-J1900
