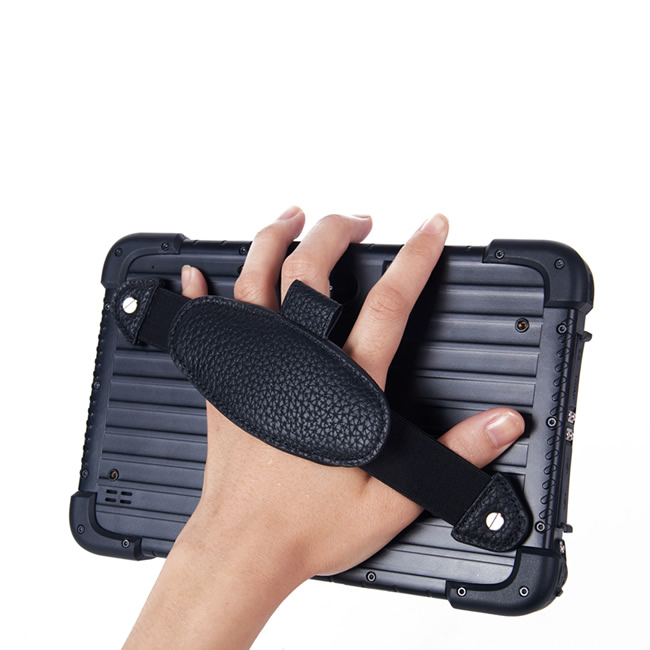

8 inch Rugged Android Tablet Q86 Q865M
- Support for Android 10 system
- Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
- 8500mAh battery, 6-8 hours of machine endurance
- IP67 high protection level, in accordance with MIL-STD-810G
- Support GPS, more accurate positioning
- Rear 13 million pixel auto focus camera, easy to collect image and video information
- Support 1D/2D, NFC and other functional modules for free selection
ITDs rugged Android tablets means they can withstand vibrations, making them suitable for mounting on forklift or vehicles, where consumer-grade tablets would fail. Having a wider operating and storage temperatures also allow you to use them in a vast range of environments vs consumer grade devices. Our rugged Android tablets can withstand the abuses of the job and reliably keep you connected wherever you go. The rugged Android tablet is fully waterproof, rugged, and its lightweight and compact. It runs on Android 9/10 and comes standard with WiFi, 4G LTE, BT 4.1/5.0 and GPS. The rugged Android tablet is ideal for fleet management, logistics applications and field services, due to its compact size, light weight, and durability.

8 inch Rugged Android Tablet PC Q86 Q865M

Model Name ITD08PPCT5-Q86/Q865M
IP Rating IP67

Basic Parameter

Dimensions 225.6144.6 21.5mm
Weight Device Unit 715g
Device Color Black
LCD Panel 8 inch IPS 16:10, 8001280/12001920
Touch Panel 5 point G+G Capacitive Touch Screen Corning Gorilla Glass
Camera Front 5.0MP Rear 13.0MP
I/O HDMI 1.4a 1,
USB 3.0 Type-A1, USB Type-C1,
SIM Card1, TF Card1,
12pins Pogo Pin1,
3.5mm standard earphone jack1,
3.5mm DC jack1
Power AC100-240V, 50Hz/60Hz, Output DC 5V/3A

Performance Parameters

CPU Qualcomm(OCTA Core), 2.0GHz
Storage 64G
OS Android 10/GMS


Capacity 3.7V/8500mAh
Type Built in Polymer Lithium Ion Battery
Endurance 8hrs ( 50% volume sounds, 50% brightness,1080P HD video display by default )


WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5G)
Bluetooth BT4.1
GNSS Built-in GPS+Glonass
3G/4G/5G (Optional) Option 1: LTE B2/B4/B5/B7/B8/B17/B38/B39/B40/B41
GSM B2/B3/B5/B8
Option 2: CMCC 4M:
LTE B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
GSM B2/B3/B5/B8
5G NR: N1/N28/N41/N78/N79(Optional)

Data Collection

NFC Built-in, ISO/IEC 14443A
1D Optional, SE655E100R
2D Optional, EM07


Operating Temperature Range -20 C ~ 60 C
Storage Temperature Range -30 C ~ 70 C
Humidity 95% non-Condensing
Rugged Feature IP67 certified, MIL-STD-810G certified
Drop Height 1.22m
