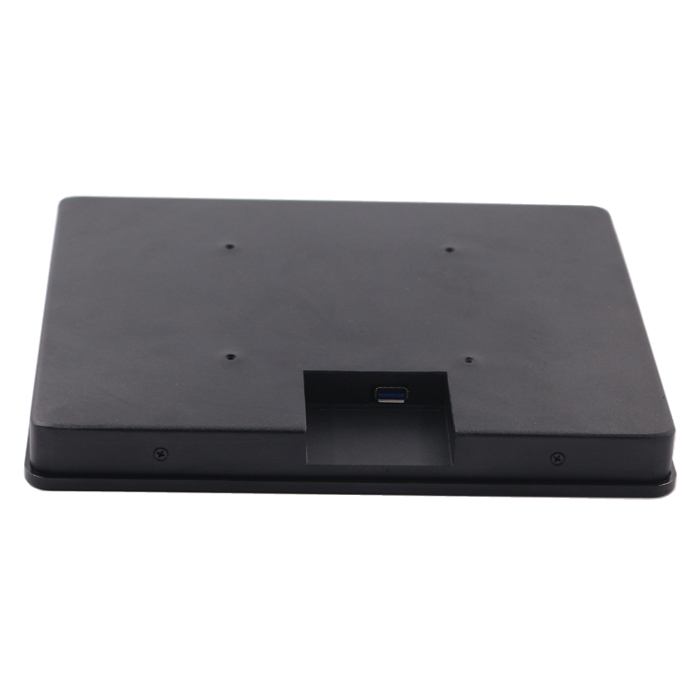

8 inch USB Powered Touch Screen LCD Monitor

Products > Industrial Touchscreen LCD > USB Powered Touch Monitor > 8 inch USB Powered Touch Screen LCD Monitor

BENEFITES
- Exceptional quality and highly engineered USB powered touch monitors
- Optional touchscreens like resistive, projected capacitive touch screen
- All steel construction designed for harsh and industrial environments
- Easy-to-install cabinet and chassis VESA-mount display
- Utilizes Displaylink for power, touch and video over single USB connection
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD chassis USB powered touch monitors come with one external USB cable only integrating power supply, video input and touch connection! One cable does it all! It is designed to help you streamline your tasks and create a more efficient and enjoyable end-user experience. Its capacitive and non-touch options have HDMI compatibility right out of the box, which is designed to be highly resilient and durable, lasting for years of consistently efficient performance to benefit industrial/commercial or business system-related needs. Its size arrange can be up to max. 15.6”.

USB Powered Touch Monitor
Model Name	ITD08CMT50U
IP Rating	N/A
LCD Panel
Screen Diagonal (Inch)	8”
Display Active Screen Size (mm)	162.048(H)×121.536(V)
Aspect Ratio	4:3
Physical Resolution	1024×768
Maximum Resolution Supported	1920×1080
Colors	262K/16.7M
Brightness (cd/m2)	400
Contrast Ratio	700:1
View Angels	80/80/80/80
Backlight/Backlight Lifetime	LED Backlight with 50000Hours’Lifetime
Touch Panel
Touch Options	Resistive, PCAP
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input	USB
Audio	N/A
Touch Connector	USB
Power Connector	USB
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 12V
Power Consumption	10W
Order Information
8”USB Powered LCD Monitor with Resistive Touch	ITD08CMT10U
8”USB Powered LCD Monitor with PCAP Touch	ITD08CMT50U
8”USB Powered LCD Monitor with Tempered Glass	ITD08CMG10U
