Products > Rugged Tablet PC > Rugged Tablet Windows PC  >  8 inch industrial rugged tablet PC I86H

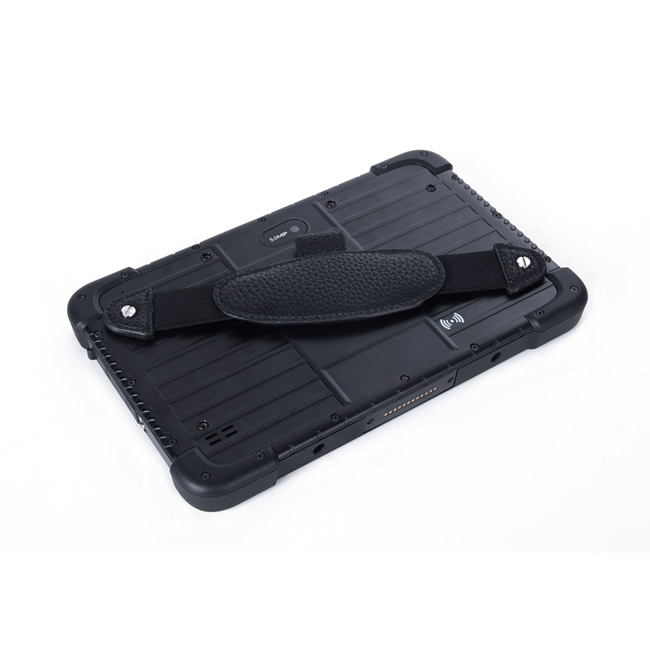

8 inch industrial rugged tablet PC I86H
- Support for Windows 10 system
- Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
- 8500mAh battery, 8 hours of machine endurance
- IP67 high protection level, in accordance with MIL-STD-810G
- Support GPS, more accurate positioning
- Support 5 million pixel auto focus camera, easy to collect images and video information.
- Support 1D/2D, NFC and other functional modules for free selection
ITDs Rugged tablet PCs with Windows allows abuses of everyday on-the-job use that are designed to withstand more challenges than their consumer-grade counterparts, with a much longer lifecycle. A variety of inputs and outputs designed to connect to equipment or transfer data and multiple wireless connectivity options bring the adaptability needed to match an ever-changing digital environment.  And with many available ITD rugged tablet pc attachments and modules like vehicle docks, docking charger, hand-strap hot-swappable batteries, UHF, RFID, NFC, fingerprint, QR reader, barcode scanner and more, you'll be amazed at the increase in productivity seen in your organization. Many of our tablets come with mounting solutions, including vehicle mounts to be used in heavy-duty machines or vehicles.

8 inch Industrial Rugged Tablet PC I86H

Model Name ITD08PPCT5-I86H
IP Rating IP65

Basic Parameter

Dimensions 225.6144.621.5mm
Weight Device Unit 715g
Device Color Black
LCD Panel 8 inch TFT 16:10, 8001280, 450nits
Touch Panel 5 point G+G Capacitive Touch Screen Corning Gorilla Glass
Camera Front 2.0MP Rear 5.0MP
I/O HDMI 1.4a1,
USB 2.0 Type-A x 1, Micro USB1,
SIM Card1, TF Card1,
12pins Pogo Pin1,
3.5mm standard earphone jack1,
3.5mm DC jack1
Power AC100-240V, 50Hz/60Hz, Output DC 5V/3A

Performance Parameters

CPU Intel Atom x5 Z8350
RAM 4G, Optional 8G
Storage 64G, Optional 128G
OS Windows 10


Capacity 3.7V/8500mAh (Optional 7800mAh, 4G)
Type Built in polymer lithium ion battery
Endurance 8hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )


WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth BT4.1
GNSS Built-in Glonass, Beidou, GPS
4G (Optional) LTE FDD: B1/B3/B7/B8/B20/B28A
GSM: B2/B3/B5/B8

Data Collection

2D Optional, SE4710
NFC                           Optional, support ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092, ISO/IEC mifare protocol
1D Optional, SE655E100R


Operating Temperature Range -20 C ~ 60 C
Storage Temperature Range -30 C ~ 70 C
Humidity 95% non-Condensing
Rugged Feature IP65 certified, MIL-STD-810G certified
Drop Height 1.22m
