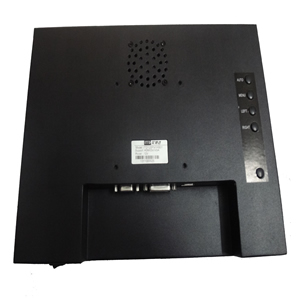

8.4 inch Open Frame LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install cabinet and open frame rear-mount display
-Multiple mounting options (75/100mm VESA mount and sidebrackets)
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install cabinet and open frame rear-mount display
-Multiple mounting options (75/100mm VESA mount and sidebrackets)
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project




Open Frame LCD
Monitor

Model Name

ITD08OFN1M1

IP Rating

N/A


LCD Panel



Screen Diagonal (Inch/cm)

8.4¡±

Display Active Screen Size (mm)

170.4(H) ¡Á127.8(V)

Aspect Ratio

4:3

Physical Resolution

800¡Á600

Maximum Resolution Supported

1920¡Á1080

Colors

262k

Brightness (cd/m2)

250nits

Contrast Ratio

500:1

View Angels

70/70/60/60

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel



Touch Options

Resistive,IR,SAW,PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation



Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

9W


Order Information



8.4¡±Open Frame LCD Monitor with Resistive Touch

ITD08OFT1M1

8.4¡±Open Frame LCD Monitor with IR Touch

8.4¡±open frame monitor LCD monitor with projected capacitive touch

8.4¡±open frame monitor LCD monitor with 500 nits no touch

8.4¡±open frame monitor LCD monitor with 500 nits resistive touch

8.4¡±open frame monitor LCD monitor with 500 nits capacitive touch

ITD08OFT2M1

ITD08OFT5M1

ITD08OFN1M5

ITD08OFT1M5

ITD08OFT5M5
