Products > Industrial Touchscreen LCD > Zero Bezel PCAP Monitors  >  86 inch Mult-Touch PCAP Monitor

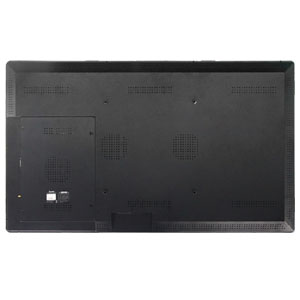

86 inch Mult-Touch PCAP Monitor
BENEFITES
- All steel/aluminum construction provides rugged frame for public use environments
- Ten independent touch points, plug and play
- Eliminates dust and debris build-up at the edge and corners of the display
- Provides improved power efficiency and reduced consumption
- Responds to a light touch in activating response
- Easy-to-clean surface without bezels
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD¡¯s line of projected capacitive touch displays are engineered specifically for industrial/commercial customers who are looking for a rugged and durable touch screen without having to sacrifice on image quality. Featuring an edge to edge zero bezel design, the touchscreen monitor can easily be wiped clean, thereby eliminating having to worry about dust and dirt collection, which helps extend the use of your display. The PCAP touchscreen LCD monitors can not only used alone as VESA wall mounted or on table with desktop stand, but also can come with side mounting brackets as open frame rear mounted in cabinets. ITD industrial multi touch displays are accurate, responsive and easy-to-use, enabling migration of existing single touch applications to a gesture-based interface that creates and delivers popular user interactions such as pan, zoom and rotate, which ideal for retail, kiosks and interactive digital signage.


Zero-Bezel PCAP Touchscreen Monitor

Model Name

ITD86OFT5P1

IP Rating

IP65 Front Panel


LCD Panel

Screen Diagonal (Inch/cm)

86¡±

Display Active Screen Size (mm)

1895.04(H) ¡Á1065.96(V)

Aspect Ratio

16:9

Physical Resolution

3840¡Á2160

Maximum Resolution Supported

3840¡Á2160

Colors

16.7M

Brightness (cd/m2)

410nits

Contrast Ratio

1200:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Technology

Projected Capacitive Touch

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Touch Life

50,000,000times/click

Surface Hardness

7H


Input / Output



Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

AC100-240V

Power Consumption

408W


Optional

Side Mounting Brackets, Desktop Stand, VESA Mounting Brackets, Webcam


Order Information

86¡±Non Touch Monitor with Tempered Glass

ITD86OFG1K1

Next£º10.1 inch PCAP Touch Panel PC with RFID or NFC Reader
Previous£º49 inch Zero-Bezel PCAP Touchscreen Monitor
