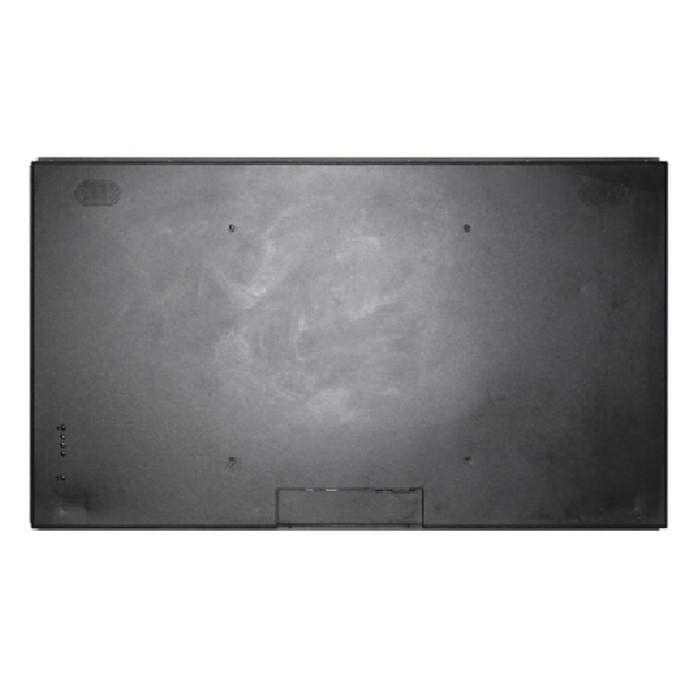

86 inch Open Frame LCD Monitor

Products > Industrial Touchscreen LCD > Open Frame LCD Monitor > 86 inch Open Frame LCD Monitor

BENEFITES
- Exceptional quality and highly engineered industrial monitors
- Optional touchscreens like IR,PCAP
- All steel construction designed for harsh and industrial environments
- Easy-to-install cabinet and open frame rear-mount display
- Multiple mounting options (75/100mm VESA mount and side brackets)
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project

ITD industrial open frame displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application. ITD open frame LCD monitors are packaged in a steel enclosure and durable glass front surface provide the durability needed for demanding industrial environments. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.

Open Frame LCD Monitor
Model Name	ITD86OFN1M1
IP Rating	N/A
LCD Panel
Screen Diagonal (Inch/cm)	86”
Display Active Screen Size (mm)	1895.04(W) x 1065.96(H)
Aspect Ratio	16:9
Physical Resolution	3840×2160
Maximum Resolution Supported	3840×2160
Colors	16.7M/1.07B
Brightness (cd/m2)	410nits
Contrast Ratio	1200:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch Options	IR, PCAP
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input	1 × VGA
	1 × DVI-I
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × DC2.0
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	AC 110V-240V
Power Consumption	408W
Order Information
86” Open Frame LCD Monitor with Tempered Glass	ITD86OFG1M1
86” Open Frame LCD Monitor with IR Touch 86” Open Frame Monitor LCD Monitor with AR Glass	ITD86OFT2M1 ITD86OFG2M1
