OVERVIEW

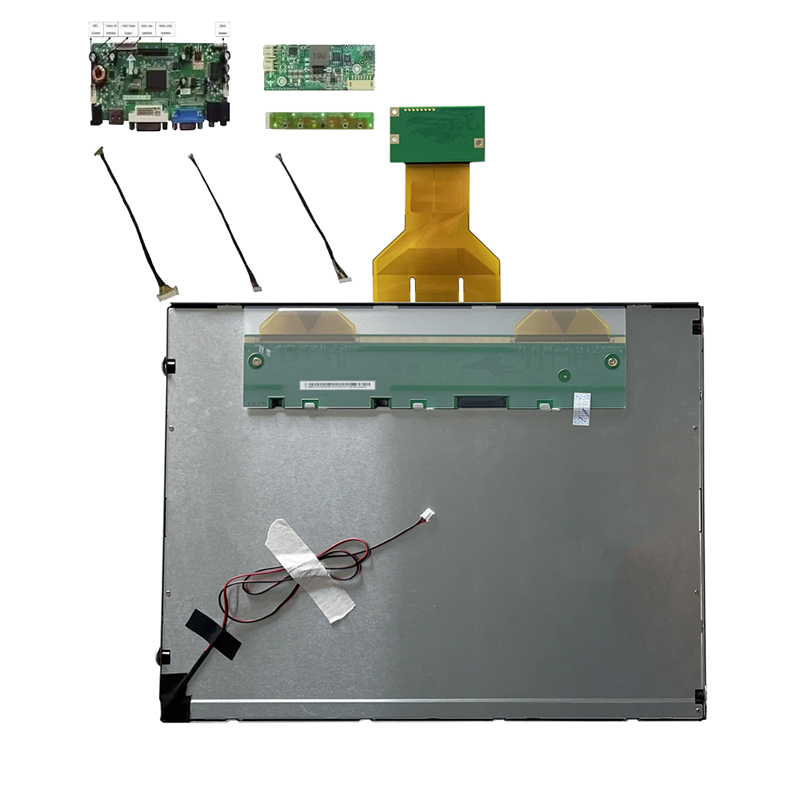

ITD’s LCD touchscreen Kit is like an industrial touchscreen monitor without an enclosure that you would install or build into a piece of equipment, device, enclosure, fixture, or other housing of your design. The touch panels can be air bonded or optical bonded on the LCD panels. Optical bonding will improve the stability&duribility, reduce the reflection, promote the viewing angle, and enhance the perceived brightness. It also provides resistance to dust particles and shows much better display effect. We offer sizes ranging from 7″ to 65″. Video inputs can include VGA, DVI, HDMI, DP or AV. LVDS&USB cables, LED driver board, OSD menu board, video cable can be all included.

9.7 inch LCD Touchscreen Kits
Model Name	ITD09KITT5xxxx
IP Rating	Front IP65
LCD Panel
Screen Diagonal (Inch)	9.7”
Display Active Screen Size (mm)	196.608(W)×147.456(H)
Aspect Ratio	4:3
Physical Resolution	1024×768
Maximum Resolution Supported	1920×1080
Colors	262K
Brightness (cd/m2)	280 cd/m2 (1000 cd/m2 optional)
Response Time	20ms
Contrast Ratio	500:1
View Angels	70/60/70/70
Backlight/Backlight Lifetime	LED Backlight with 30000Hours’Lifetime
Touch Panel
Touch Technology	Projected Capacitive Touch
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Touch Life	50,000,000times/click
Surface Hardness	7H
Surface Treatment	Anti-Glare, Anti-Reflective, Anti-Finger optional
Glass Strengthening	Chemically Strengthened
AD Board(optional)
Video Input	1 × VGA
	1 × DVI-I
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × DC2.0
Operation
Operating Temperature Range	-20~70°C
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Input	DC 12V, DC9~36V input optional
Power Consumption	6W
