BENEFITES
- All steel/aluminum construction provides rugged frame for public use environments
- Tempered glass integrated for vandal proof
- Eliminates dust and debris build-up at the edge and corners of the display
- Provides improved power efficiency and reduced consumption
- 4K Ultra HD displays delivering amazingly life-like picture quality
- Easy-to-clean surface without bezels
- Long lasting product cycle for continuity thru all phases of project
|
| |
|
Model Name |
ITD98ADG1D1 |
|
IP Rating |
IP65 Front Panel |
|
| |
|
Screen Diagonal (Inch/cm) |
98¡± |
|
Display Active Screen Size (mm) |
878.112(H) x 485.352(V) |
|
Aspect Ratio |
16:9 |
|
Physical Resolution |
3840 x 2160 |
|
Maximum Resolution Supported |
3840 x 2160 |
|
Colors |
16.7M |
|
Brightness (cd/m2) |
500nits |
|
Contrast Ratio |
1300:1 |
|
View Angels |
89/89/89/89 |
|
Backlight/Backlight Lifetime |
|
|
| |
|
Video Input |
1 ¡Á TV input(ATVPAL/NTSC) |
|
1 ¡Á AV inputs | |
|
2 ¡Á HDMI inputs | |
|
|
1 ¡Á YPbPr input |
|
|
1 ¡Á CVBS input&output |
|
|
2 ¡Á USB ports |
|
Audio Input/Putput |
1 ¡Á Audio input/output |
|
| |
|
Operating |
0~50¡ãC |
|
|
10-90% |
|
24/7/365 Use |
Supported |
|
| |
|
Power Indicator |
Green LED |
|
Power Input |
AC100-240V |
|
Power Consumption |
480W |
|
| |
|
Wall-Mounting Brackets, Desktop Stand, Network TV Function | |
|
| |
|

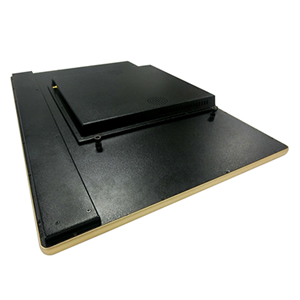

98¡±Large Format LCD Display with Network TV Integrated |
ITD98ADG1DE |
