Products > Industrial Embedded Box Computers > x86 Based Industrial Embedded Box PCs  >  Industrial Embedded Box PC (I3/I5/I7)

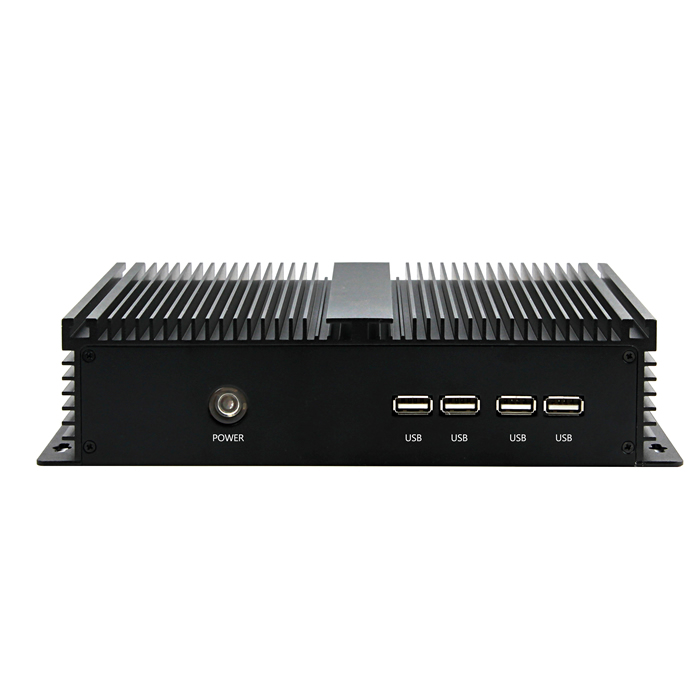

Industrial Embedded Box PC (I3/I5/I7)
BENEFITES
- IoT gateway ready for future requirements
- Energy-efficient and fan-less IPC Systems
- Intel Core i3/i5/i7 with 5th, 6th, 7th, 8th generations optional
- Maintenance-free with no rotating disk (HDD)
- Robust aluminum die-casting housing
- Power-optimized PC with 32- or 64-bit OS
- High system availability and data security
- High data transfer rates and redundancy
OVERVIEW
ITD Industrial Embedded Box PC is ultra-compact industrial computer for repetitive machines and infrastructures. It utilizes an Intel? Core? i3/i5/i7 Processor, on-board non-volatile DDR3L-1333 memory with fan-less. This delivers a great combination of performance, features and functionality at an affordable price, which offer real-time performance, compact footprint and lightweight aluminum die-cast housing and are easy to service, maintenance-free, space-saving and fan-less.



Industrial Embedded Box PC

Model Name

ITD-MNPC-X31-I3/I5/I7

IP Rating

N/A


PC Systems

CPU

Intel?Core?i3/i5/i7Processor                               (i3-5005U/i5-5200U/i7-5500U;

i3-6100U/i5-6200U/i7-6500U;

i3-7100U/i5-7200U/i7-7500U;

i3-8130U/i5-8250U/i7-8550U)

Chipset

Intel? SoC

Graphics

Intel? HD Graphics

Audio

MIC-IN, LINE-OUT

Memory

2GB, up to Max. 16GB

Storage

320GB SATA up Max. 1TB; 32GB SSD up to Max. 1TB (MSATA Supported)

Driver Support

Windows CE/XP/7/8/10, Linux,


I/O



Serial Ports

6 x COM max. 8 x COM

USB Ports

2 x USB2.0, 4 X USB3.0 max. 8 x USB

HDMI Port

1 x HDMI

VGA Port

1 x VGA

Mini PCIe

Yes

LPT Port

1 x LPT

Audio

Realtek ALC662 HD Audio

Audio

MIC-IN, LINE-OUT

Communication (3G/4G, WIFI)

Optional

LAN

1 x 10/100/1000Mbps Ethernet

Power Port

1 x DC 12V Input (1 x ON/OFF Power Switch)


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

TBA


Operation/Mechanical

Operating Temperature

-10~60

Humidity Range

20%~90% (Non Condensing)

Housing Material

Aluminum Die-Casting

Housing Dimension (L W H)

180mm x 128mm x 55mm
