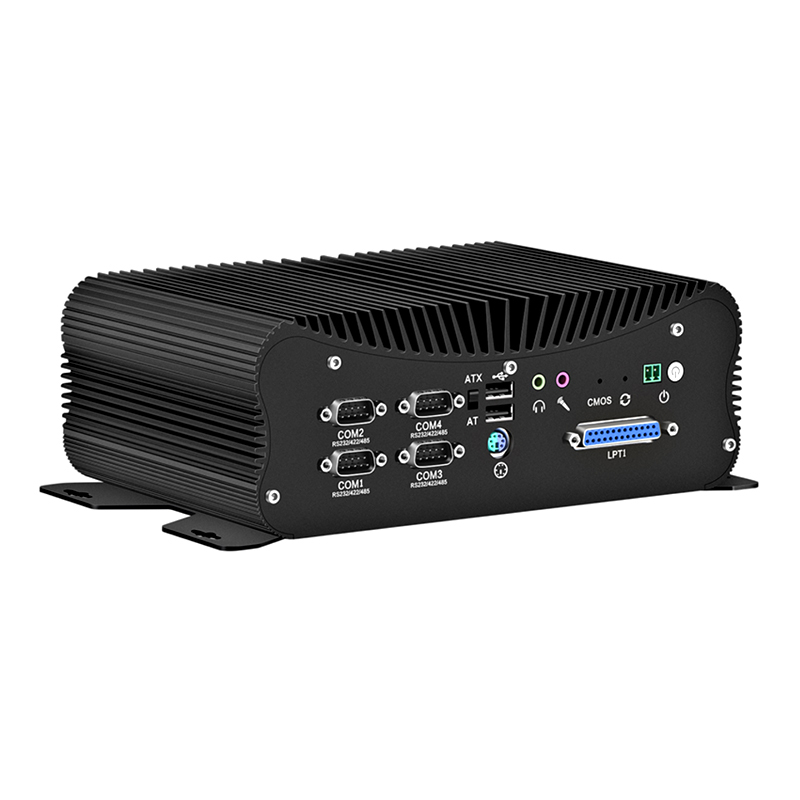

Industrial Embedded Box PC

Model Name

ITD-MNPC-I3/I5/I7B

IP Rating

N/A

PC Systems

CPU

Intel? Core i3/i5/i7 4th,5th,6th,7th,8th,10th optional

Chipset

Intel? SoC

Graphics

Audio

MIC-IN, LINE-OUT

Memory

2GB, up to Max. 16GB

Storage

1 x MSATA; 1 x HDD/SDD

Driver Support

Windows CE/XP/7/8/10, Linux,

I/O

Serial Ports

2 x DB9 RS232, 4 x DB9 RS232/RS485/RS422

USB Ports

4 x USB3.0, 2 x USB2.0(1 x USB2.0 as Watchdog Interface)

HDMI Port

1 x HDMI

VGA Port

1 x VGA

PS2

1 x PS2 (Keyboard & Mouse two in one)

GPIO

14 x GPIO ( 7 IN, 7 OUT)

Others

1 x LPT, 1 x Earphone Jack, 1 x Microphone; 1 x DIP Switch, supporting ATX/AT boot mode

Button

1 x Power Button, 1 x Reset Button, 1 x Clear CMOS Button

Communication (3G/4G, WIFI)

Optional

LAN

2 x 10/100/1000Mbps Ethernet

Power Port

1 x 3pin Phoenix Connector, 9~36V input

Power

Power Indicator

Green LED

Power Input

DC 9-36V

Power Consumption

TBA

Operation/Mechanical

Operating Temperature

-20~70℃

Humidity Range

10%~90% (Non Condensing)

Housing Material

Aluminum Die-Casting

Housing Dimension (L × W × H)

225mm x 150mm x 84.42mm
