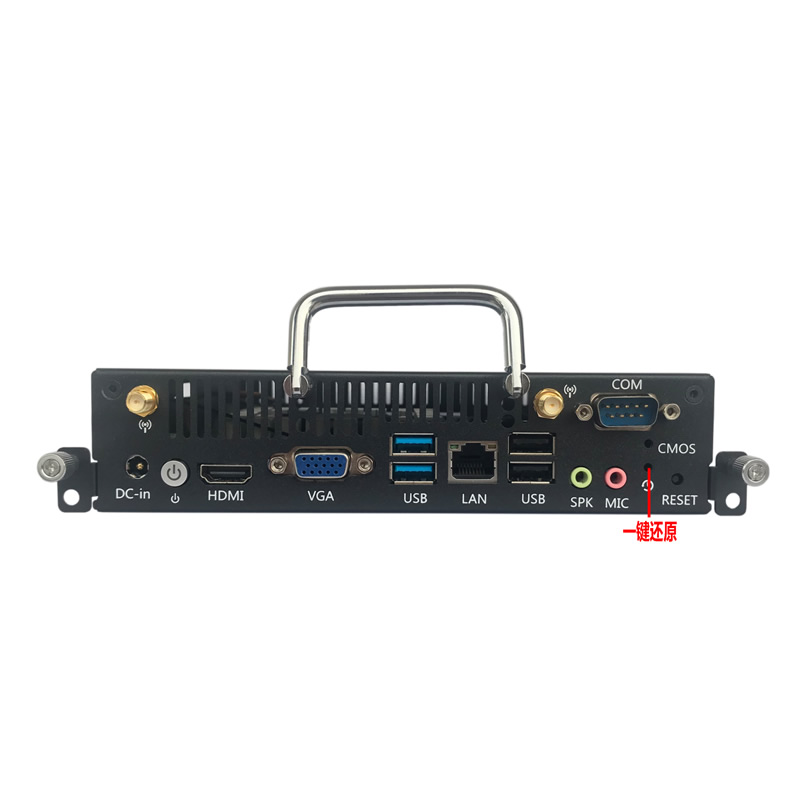

OPS Embedded Pluggable Mini Digital Signage Box PC

Products > Industrial Embedded Box Computers > x86 Based Industrial Embedded Box PCs > OPS Embedded Pluggable Mini Digital Signage Box PC

BENEFITES
- Small form factor: OPS BOX PCs are compact in size and can be easily installed into the OPS slot of a compatible display.
- High-performance: OPS BOX PCs are powered by powerful processors that can handle various media-rich applications and provide smooth playback of high-resolution content.
- Multiple connectivity options: OPS BOX PCs come with a range of connectivity options, including USB, HDMI, Ethernet, and Wi-Fi, which allows them to be easily integrated with other devices.
- Low power consumption: OPS BOX PCs are designed to consume less power, making them energy-efficient and cost-effective.
- Easy installation and maintenance: Installing and maintaining OPS BOX PCs is easy as they can be easily inserted and removed from the OPS slot, and software updates can be easily installed remotely.
- Compatibility: OPS BOX PCs are designed to be compatible with a range of operating systems and media players, making them versatile and flexible.
- CE, FCC, RoHS Compliance

OVERVIEW
ITD’s OPS BOX PC is a small form factor computer that can be inserted into an OPS compatible slot on a display or other device, enabling it to function as a complete digital signage solution. These devices typically have a low profile design, minimal power consumption, and support for various operating systems and media playback software. They are commonly used in commercial and public settings, such as retail stores, airports, and hotels, where digital signage is used for advertising, wayfinding, and other applications. OPS BOX PC refers to a type of computer that is designed to be used with an Open Pluggable Specification (OPS) compatible display. ITD’s OPS BOX PCs are a convenient and powerful solution for digital signage, making it easier to create and manage dynamic content for a range of commercial and public applications.

OPS Embedded Pluggable Mini Digital Signage Box PC
Model Name	ITD-MNPC-xxxxU-OPS-PxxN
IP Rating	N/A
PC Systems
CPU	Onboard Intel Celeron 3855U, 3865U, Core6th/7th Processor
Chipset	Intel? SoC
Graphic	Integrated Intel HD Graphics 510/520/610/620 in CPU
Memory	1×DDR4 2133/2400MHz low voltage 1.2V Memory channel, max.16GB
Storage Disk Driver	1×2.5inch SATA slot for SSD or HDD; 1×SATA3.0 port for 2.5inch SSD or HDD; 1×MSATA3.0 slot (SATA, USB signals) for Mini SATA(MSATA) SSD;
Driver Support	Windows 7/8/10, Linux Ubuntu, Windows 11(available for 7th Gen.)
Watchdog Timer	Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds)
Sound	Integrated Realtek ALC662 HD digital audio decoder,6-channel high-fidelity audio controller.
I/O
Serial Ports	1 × 80pin OPS slot
USB Ports	2 × USB3.0, 2 x USB2.0
HDMI Port	1 × HDMI Output
VGA Port	1 × VGA Output
GPIO	1 × SPK
Audio	1 × Min-in
Wireless Communication	2 × WIFI holes for antenna masts. 1*Mini PCIE slot (PCIE, USB signals) supports WIFI,3G/4G/Bluetooth/GPS module.
Button	1 × Power Button
Ethernet	1 × LAN
Power Port	1 × DC 12V input, 1×one-key recovery system button,1×CMOS button,1×Reset button
Power
Power Indicator	Green LED
Power Input	DC 12V
Power Consumption	10-15W
Operation/Mechanical
Operating Temperature	-20~60℃
Storage Temperature	-30~70℃
Humidity Range	5%~95% @30℃ Non Condensing
Housing Material	Metal
Housing Dimension (L × W × H)	180mm x 195mm x 33mm
Net Weight	2kg
Order Information
OPS PC with Intel Celeron 6th Gen. 3855U 1.6GHz, I/O listed on above	ITD-MNPC-3855U-OPS-P30N/P33N
OPS PC with Intel Celeron 6th Gen. 3955U 2.0GHz, I/O listed on above	ITD-MNPC-3955U-OPS-P30N/P33N
OPS PC with Intel Core 6th Gen. 6006U 2.0GHz, I/O listed on above	ITD-MNPC-6006U-OPS-P30N/P33N
OPS PC with Intel Core 6th Gen. 6100U 2.3GHz, I/O listed on above	ITD-MNPC-6100U-OPS-P30N/P33N
OPS PC with Intel Core 6th Gen. 6200U 2.3GHz, I/O listed on above	ITD-MNPC-6200U-OPS-P30N/P33N
OPS PC with Intel Core 6th Gen. 6300U 2.4GHz, I/O listed on above OPS PC with Intel Core 6th Gen. 6500U 2.5GHz, I/O listed on above	ITD-MNPC-6300U-OPS-P30N/P33N ITD-MNPC-6500U-OPS-P30N/P33N
OPS PC with Intel Core 6th Gen. 6600U 2.6GHz, I/O listed on above	ITD-MNPC-6600U-OPS-P30N/P33N
OPS PC with Intel Core 7th Gen. 3865U 1.8GHz, I/O listed on above	ITD-MNPC-3865U-OPS-P30N/P33N
OPS PC with Intel Core 7th Gen. 3965U 2.2GHz, I/O listed on above	ITD-MNPC-3965U-OPS-P30N/P33N
OPS PC with Intel Core 7th Gen. 7020U 2.3GHz, I/O listed on above	ITD-MNPC-7020U-OPS-P30N/P33N
OPS PC with Intel Core 7th Gen. 7100U 2.4GHz, I/O listed on above	ITD-MNPC-7100U-OPS-P30N/P33N
OPS PC with Intel Core 7th Gen. 7130U 2.7GHz, I/O listed on above	ITD-MNPC-7130U-OPS-P30N/P33N
OPS PC with Intel Core 7th Gen. 7200U 2.5GHz, I/O listed on above	ITD-MNPC-7200U-OPS-P30N/P33N
OPS PC with Intel Core 7th Gen. 7020U 2.6GHz, I/O listed on above	ITD-MNPC-7300U-OPS-P30N/P33N
OPS PC with Intel Core 7th Gen. 7500U 2.7GHz, I/O listed on above	ITD-MNPC-7500U-OPS-P30N/P33N
OPS PC with Intel Core 7th Gen. 7600U 2.8GHz, I/O listed on above	ITD-MNPC-7600U-OPS-P30N/P33N
OPS PC with above options but with an extra COM port	ITD-MNPC-xxxxU-OPS-P42N
