15.6 inch IP69K Stainless Touchscreen LCD Monitor

Products > Rugged IP66/IP67/IP69K Stainless Displays > IP69K Touchscreen Monitor > 15.6 inch IP69K Stainless Touchscreen LCD Monitor

BENEFITES
- The IP69K rating ensures that these monitors are fully sealed against ingress of moisture and contaminants, making them ideal for use in hygienic environments such as cleanrooms, laboratories, and healthcare facilities.
- The rugged construction and sealed design of IP69K-rated monitors provide an additional layer of safety for operators working in hazardous or volatile environments.
- Designed to operate reliably across a wide temperature range, from extreme cold to high heat, ensuring consistent performance in challenging climates or outdoor applications.
- The touchscreen interface of these monitors promotes ergonomic interaction, allowing operators to adjust settings, monitor processes, and troubleshoot issues with ease.

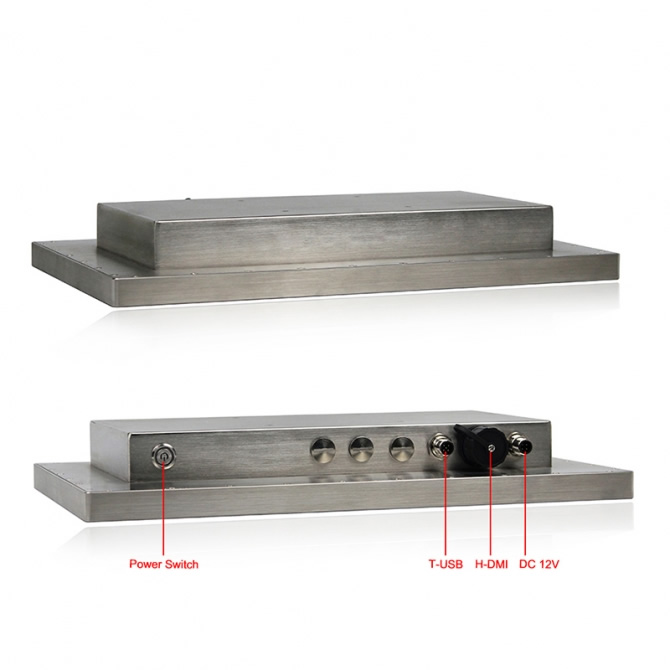

- M12 Waterproof I/O connectors protected from any particles, water, and corrosive agents.
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD’s IP69K touchscreen monitor – a rugged solution engineered for the toughest industrial environments. Designed to meet the stringent demands of sectors such as food and beverage, pharmaceuticals, and automotive manufacturing, this monitor sets a new standard in durability and reliability. With its IP69K rating, this touchscreen monitor is impervious to dust ingress and can withstand high-pressure, high-temperature washdowns, making it ideal for applications where hygiene and sanitation are critical. Its robust construction ensures protection against water, chemicals, and physical damage, allowing it to thrive in environments where other displays would fail.

IP69K Touchscreen Monitor
Model Name	ITD13CMx1IPS1-69K
IP Rating	IP69K
LCD Panel
Screen Diagonal (Inch/cm)	15.6”
Aspect Ratio	16 : 9
Display Active Screen Size (mm)	344.16(W)×193.59(H) mm
Physical Resolution	1920×1080
Pixel Pitch	0.17925×0.17925
Response Time	14/11ms
Colors	16.7M
Brightness (cd/m2)	300nits (500nits,1000nits optional)
Contrast Ratio	700:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 30000 Hours’ Lifetime
Touch Panel
Touch Options	Resistive, PCAP
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Default Waterproof Input / Output
HDMI Output	1 × HDMI input
Touch Port	1 × USB
Power Port	1 × DC2.0
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90% Non-Condensing
24/7/365 Use	Supported
Power
Power Indicator	N/A
Power Input	DC 12V (DC9~36V input optional)
Power Consumption	10W
Order Information
15.6”IP69K Stainless Steel LCD Monitor with Resistive Touch	ITD156CMT1IPS1-69K
15.6”IP69K Stainless Steel LCD Monitor with PCAP Touch	ITD156CMT5IPS1-69K
15.6”IP69K Stainless Steel LCD Monitor with Tempered Glass No Touch	ITD156CMG1IPS1-69K
15.6”IP69K Stainless Steel LCD Monitor with Resistive Touch, 1000nits	ITD156CMT1HBIPS2-69K
15.6”IP69K Stainless Steel LCD Monitor with PCAP Touch. 1000nits	ITD156CMT5HBIPS2-69K
15.6”IP69K Stainless Steel LCD Monitor with Tempered Glass No Touch, 1000nits	ITD156CMG1HBIPS2-69K
