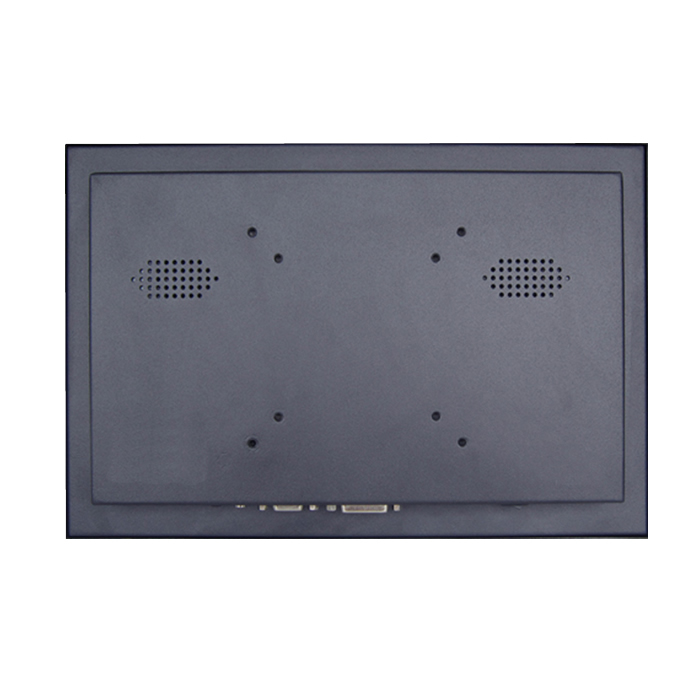

Chassis High Brightness LCD Monitor

Model Name

ITD101CMN1HB02

IP Rating

IP65 Front Optional

LCD Panel

Screen Diagonal (Inch/cm)

10.1”

Display Active Screen Size (mm)

222.72(H) ×125.28V)

Aspect Ratio

16:10

Physical Resolution

1280×800

Maximum Resolution Supported

1920×1200

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

500:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Input / Output

Video Input

1 × VGA

1 × DVI-I

1 × HDMI

Audio

1 × PC-Audio

Touch Connector

1 × USB

Power Connector

1 × DC2.0

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

18W

Order Information

10.1”1000nits Chassis LCD Monitor with Resistive Touch

ITD101CMT1HB02

10.1”1000nits Chassis LCD Monitor with IR Touch

ITD101CMT2HB02

10.1”1000nits Chassis LCD Monitor with SAW Touch

ITD101CMT3HB02

10.1”1000nits Chassis LCD Monitor with PCAP Touch

ITD101CMT5HB02

10.1”1000nits Chassis LCD Monitor with Tempered Glass

ITD101CMG1HB02
