OVERVIEW

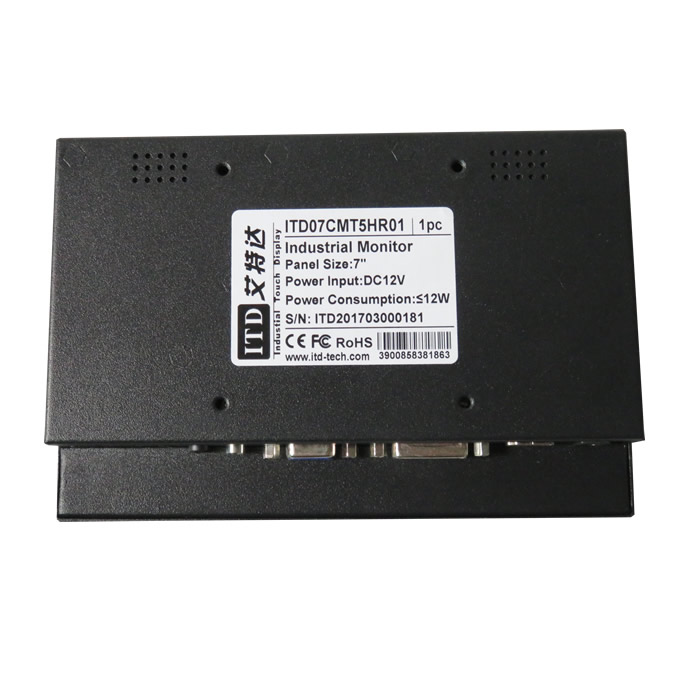

ITD industrial chassis sunlight readable LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial/commercial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. High brightness chassis LCD monitors are ideal for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminals and industrial machinery builder for indoor, semi-outdoor or outdoor applications. ITD full-range selection is provided in screen sizes from 6.5¡±~84¡±.
|
| |
|
Model Name IP Rating |
ITD07CMN1HB02 IP65 Front Optional |
|
| |
|
Screen Diagonal (Inch/cm) |
7¡± |
|
Display Active Screen Size (mm) |
154.214(H) ¡Á85.92(V) |
|
Aspect Ratio |
16:9 |
|
Physical Resolution |
1024¡Á600 |
|
Maximum Resolution Supported |
1920¡Á1080 |
|
Colors |
262K/16.7M |
|
Brightness (cd/m2) |
1000 cd/m2 |
|
Contrast Ratio |
800:1 |
|
View Angels |
75/75/70/75 |
|
Backlight/Backlight Lifetime |
|
|
| |
|
Touch Options |
Resistive, PCAP |
|
Touch Drivers |
Windows, Linux, Android, Mac, Raspberry Pi |
|
| |
|
Video Input |
1 ¡Á VGA |
|
1 ¡Á DVI-I | |
|
1 ¡Á HDMI | |
|
Audio |
1 ¡Á PC-Audio |
|
Touch Connector |
1 ¡Á USB |
|
Power Connector |
1 ¡Á DC2.0 |
|
| |
|
Operating Temperature Range |
-10~60¡ãC (-20~70¡ãC Optional) |
|
Humidity Range (RH) |
10-90% |
|
24/7/365 Use |
Supported |
|
| |
|
Power Indicator |
Green LED |
|
Power Input |
DC 12V |
|
Power Consumption |
12W |
|
| |
|
7¡±1000nits Chassis LCD Monitor with Resistive Touch |
ITD07CMT1HB02 |
|
7¡±1000nits Chassis LCD Monitor with IR Touch |
ITD07CMT2HB02 |
|
7¡±1000nits Chassis LCD Monitor with SAW Touch |
ITD07CMT3HB02 |
|
7¡±1000nits Chassis LCD Monitor with PCAP Touch |
ITD07CMT5HB02 |
|
7¡±1000nits Chassis LCD Monitor with Tempered Glass |
ITD07CMG1HB02 |
