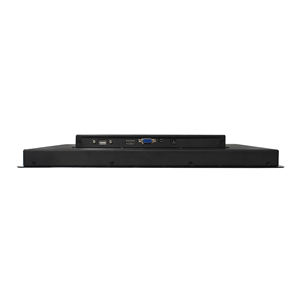

10.1 inch Flat Bezel Panel Mount LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, PCAP
-All steel construction designed for harsh and industrialenvironments
-True flat surface, easy to clean
-Easy-to-install embedded/panel mounting with clamps
-Robust design with aluminum NEMA 4/ IP65 front panel
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial panel mountLCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments.A new design combined with PCAP or resistive touch makes true flat surface, easy to clean. Industrial panel mount LCD monitors are ideal for system integrators,kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine applications.




Flat Bezel Panel Mount LCD
Monitor

Model Name

ITD101PMN1X1

IP Rating

N/A


LCD Panel



Screen Diagonal (Inch)

10.1

Display Active Screen Size (cm)

216.96(H)135.6(V)

Aspect Ratio

16:10

Physical Resolution

1280800

Maximum Resolution Supported

19201200

Colors

262K

Brightness (cd/m2)

300

Contrast Ratio

1300:1

View Angels

85/85/85/85

Backlight/Backlight Lifetime

LED Backlight with 50000Hours' Lifetime


Touch Panel



Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 VGA

1 DVI-I

1 HDMI

Audio

1 PC-Audio

Touch Connector

1 USB

Power Connector

1 DC2.0


Operation

Operating Temperature Range

-10~60C (-20~70COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

8.75W


Order Information



10.1Panel Mount LCD Monitor with Resistive Touch

ITD101PMT1X1

10.1Panel Mount LCD Monitor with PCAP Touch

ITD101PMT5X1

10.1Panel Mount LCD Monitor with Tempered Glass

ITD101PMG1X1
