Products > Digital Signage > Wall Mounted Digital Posters  >  19 inch Wall-Mounted Digital Signage LCD Display

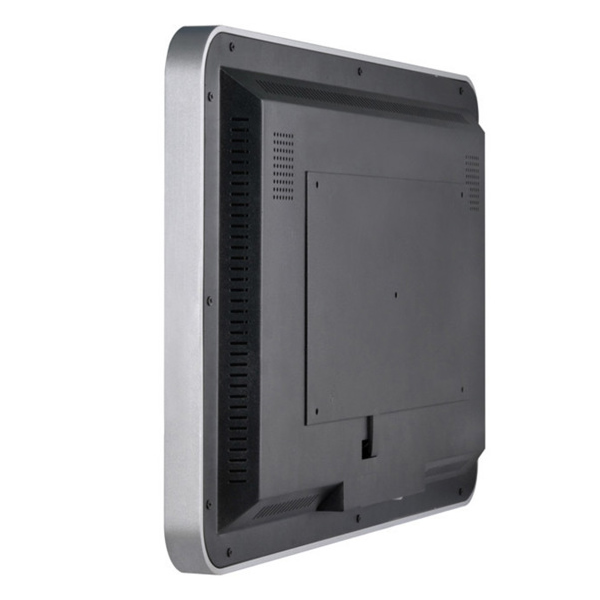

19 inch Wall-Mounted Digital Signage LCD Display
BENEFITES
- Exceptional quality and commercial-grade reliability and performance
- Ultra-Slim, Energy-Efficient LED Backlight Technology
- All steel construction designed for harsh & public environments
- Timing, split screen, plug and play, playback supported
- Optional touchscreens like IR, PCAP, touch foil
- Tempered glass fitted on front for vandal proof
- Landscape and portrait flexibility
- Optional single media player, network media player integrated
- Pre-installed CMS management system for network version
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD wall mounted digital signage displays series is a truly dynamic medium that puts on a show, engages with impact and communicates and conveys all manner of media in unique, branded and tailored style across display screens that project in ways that conventional media messaging just can¡¯t touch. Content is customized with text, graphics and video that shouts, schmoozes or just speaks spectacularly. ITD wall-mounted digital signage displays incorporate media playing with optional single SD card and USB port, ARM based player and x86 based player integrated, a sleek design and commercial functionality into an affordable digital signage solution. Featuring an elegant design with zero-bezel and ultra-slim profile, the ITD wall-mounted digital signage series is the ideal display solution for digital signage applications in retail stores, restaurants, medical offices, healthcare, corporate meeting areas, education, hotel and leisure environments..




Wall-Mounted Digital Signage LCD Display

Model Name

ITD19ADG1**

IP Rating

IP65 Front Panel Optional


Single Media Player Option

1 ¡ÁUSB 2.0, 1¡ÁSD Card Slot, 1¡ÁHDMI Input(Optional)

Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV

Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE

Picture Formats Supported: JPEG, BMP, GIF, PNG

File Formats Supported: FAT, FAT32, NTFS


PC Systems Options



ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel



Screen Diagonal (Inch)

19¡±

Display Active Screen Size (cm)

376.3(H)¡Á301.1(V)

Aspect Ratio

5:4

Physical Resolution

1280¡Á1024

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

250

Contrast Ratio

1000:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000Hours' Lifetime


Touch Panel Available for Network Version



Touch Options

IR, PCAP, Touch Foil

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

0~50¡ãC

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power /Speakers



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

Speakers

32.5W

2¡Á5W


Order Information



19¡±Wall Mounted Single Digital Signage

ITD19ADG1A1

19¡±Wall Mounted Android Network Digital Signage

ITD19ADG1BE1

19¡±Wall Mounted Windows(J1900) Network Digital Signage

ITD19ADG1BJ1

19¡±Wall Mounted Windows(Intel i3) Network Digital Signage

ITD19ADG1BC1
