Products > Sunlight Readable LCD > Sunlight Readable Full IP65 IP66 LCD Monitor  >  10.1 inch High Brightness Full IP65/IP66 Touchscreen LCD Monitor

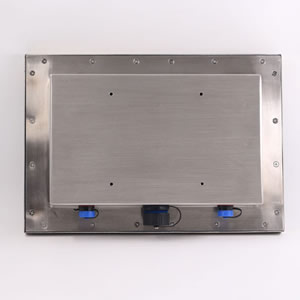

10.1 inch High Brightness Full IP65/IP66 Touchscreen LCD Monitor

BENEFITES
-Exceptional quality and highly engineered industrial heavy duty monitors
-Optional touchscreens like resistive and PCAP
-Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
-Solid steel and stainless steel or aluminum alloy enclosures with cooling fin
-IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
-High brightness from 1000nits to 1500nits optional
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD full IP65 sunlight readable LCD touchscreen displays are fully-integrated units that combine high brightness TFT LCD, touch screen, waterproof and dustproof, fully sealed stainless steel chassis or aluminum alloy chassis and I/O with IP65/ NEMA 4 Ingress protection rating designed to be tough and rugged. The enclosure features easy-to clean stainless steel/aluminum alloy construction that is corrosion resistant. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. They are built for demanding applications with high industrial requirement, such as outdoor kiosk, beverage, marine, oil/gas, pharmaceutical and tobacco industries for operator control and monitoring for semi-outdoor and outdoor applications.


Full IP65/IP66
High Brightness Touchscreen Monitor

Model Name

ITD10CMG1IPHBA1

IP Rating

Full IP65/IP66(IP67 optional)


LCD Panel

Screen Diagonal (Inch/cm)

10.1

Display Active Screen Size (mm)

216.96(H) x 135.6(V)mm

Aspect Ratio

16:10

Physical Resolution

1280 x 800

Maximum Resolution Supported

1920 x 1200

Colors

16.7M

Brightness (cd/m2)

1000nits

Contrast Ratio

800:1

View Angels

85/85/85/85

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours Lifetime


Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output




Video Input

1 VGA

N/A

1 HDMI(Optional)

Audio

N/A

Touch Connector

1 USB(Optional)

Power Connector

1 DC2.0


Operation



Operating Temperature Range

-10~60C (-20~70C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

N/A

Power Input

DC 12V

Power Consumption

16W


Order Information

10.11000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing

ITD101CMT1IPHBA1

10.11000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing

ITD101CMT5IPHBA1

10.11000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing

ITD101CMT1IPHBS1

10.11000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing

ITD101CMT5IPHBS1

10.11000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing

ITD101CMG1IPHBA1

10.11000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing

ITD101CMG1IPHBS1
