OVERVIEW

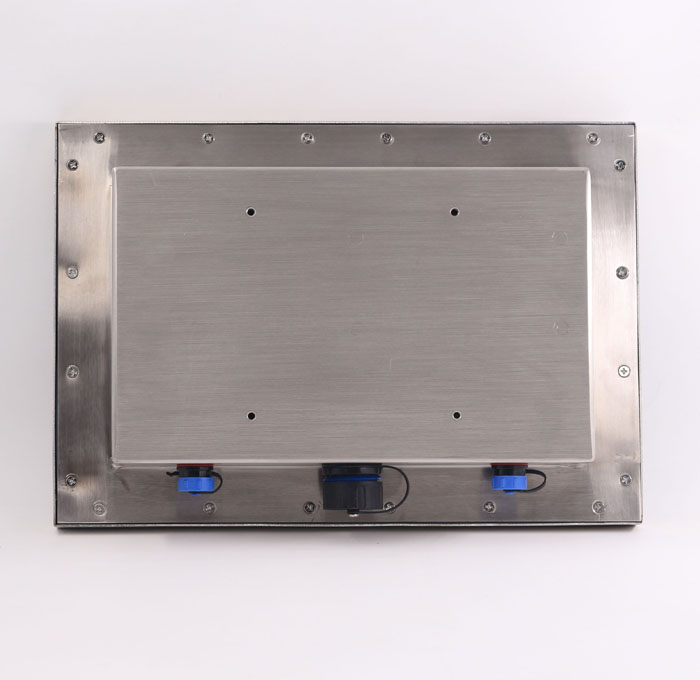

ITD industrial full IP65 sunlight readable touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP65 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD sunlight readable full IP65 touch panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.
|
| |||
|
Model Name |
ITD101PPCG1IPHB** | ||
|
IP Rating |
IP65/IP66(IP67 optional) | ||
|
| |||
|
ARM Android Based RK3288(RK3368 optional) |
X86 Windows Based |
X86 Windows Based | |
|
CPU: Quad-Core Cortex-A17 1.8GHz |
CPU: Intel? Celeron J1900 |
CPU: Intel Core i3/i5/i7 | |
|
Chipset: N/A |
Chipset: Intel? NM10 Express |
Chipset: Intel? HD Graphics, Support 1080p | |
|
Memory: 1G/2G |
Memory: 2GB(Max. 8GB) |
Memory: 2GB(Max. 8GB) | |
|
HDD/SSD: 8G |
HDD/SSD:500G/64G |
HDD/SSD:500G/64G | |
|
1×HDMI |
1×VGA, 1×HDMI |
1×VGA, 1×HDMI | |
|
1×USB 2.0 |
2×USB 2.0, 2×USB3.0 |
2×USB 2.0, 2×USB3.0 | |
|
1×mini-SD slot |
1×COM(RS232/422/485) |
1×COM(RS232/422/485) | |
|
1×LAN |
1×LAN |
1×LAN | |
|
1×Audio Out |
1×Audio Out, 1×MIC In |
1×Audio Out, 1×MIC In | |
|
Expansion: SSD |
Expansion: USB, COM, Mini-PCIe |
Expansion: USB, COM, Mini-PCIe | |
|
Default IP65 Connectors: 1×USB 2.0, 1×LAN, 1×DC 2.0 | |||
|
| |||
|
Screen Diagonal (Inch/cm) |
10.1” | ||
|
Display Active Screen Size (mm) |
216.96(H) x 135.6(V)mm | ||
|
Aspect Ratio |
16:10 | ||
|
Physical Resolution |
1280 x 800 | ||
|
Maximum Resolution Supported |
1920 x 1200 | ||
|
Colors |
16.7M | ||
|
Brightness (cd/m2) |
350nits | ||
|
Contrast Ratio |
800:1 | ||
|
View Angels |
85/85/85/85 | ||
|
Backlight/Backlight Lifetime |
LED Backlight with 50000 Hours’ Lifetime | ||
|
| |||
|
Touch Options |
Resistive, PCAP | ||
|
Touch Drivers |
Windows, Linux, Android, Mac, Raspberry Pi | ||
|
| |||
|
Operating Temperature Range |
-10~60°C (-20~70°C Optional) | ||
|
Humidity Range (RH) |
10-90% | ||
|
24/7/365 Use |
Supported | ||
|
| |||
|
Power Indicator |
Green LED | ||
|
Power Input |
DC12V | ||
|
Power Consumption |
16W | ||
|
| |||
|
10.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900 |
ITD101PPCT1IPHBSJ1 | ||
|
10.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, J1900 |
ITD101PPCT5IPHBSJ1 | ||
|
10.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, J1900 |
ITD101PPCG1IPHBSJ1 | ||
|
10.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i3 |
ITD101PPCT1IPHBSI3 | ||
|
10.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i3 |
ITD101PPCT5IPHBSI3 | ||
|
10.1”1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i3 |
ITD101PPCG1IPHBSI3 | ||
|
10.1”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Resistive Touch, J1900 |
ITD101PPCT1IPHBAJ1 | ||
|
10.1”1000nits Fu,,,ll IP65/IP66 Aluminum Alloy ,Panel PC with PCAP Touch, J1900 ,,, |
ITD101PPCT5IPHBAJ1 | ||
|
10.1”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Tempered Glass, J1900 |
ITD101PPCG1IPHBAJ1 | ||
|
10.1”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Resistive Touch, i3 |
ITD101PPCT1IPHBAI3 | ||
|
10.1”1000nits Full IP65/IP66 Aluminum Alloy Panel PC with PCAP Touch, i3 |
|||
