Products > Rugged Tablet PC > Rugged Tablet Windows PC  >  10.1 inch ip67 rugged tablet pc I16H

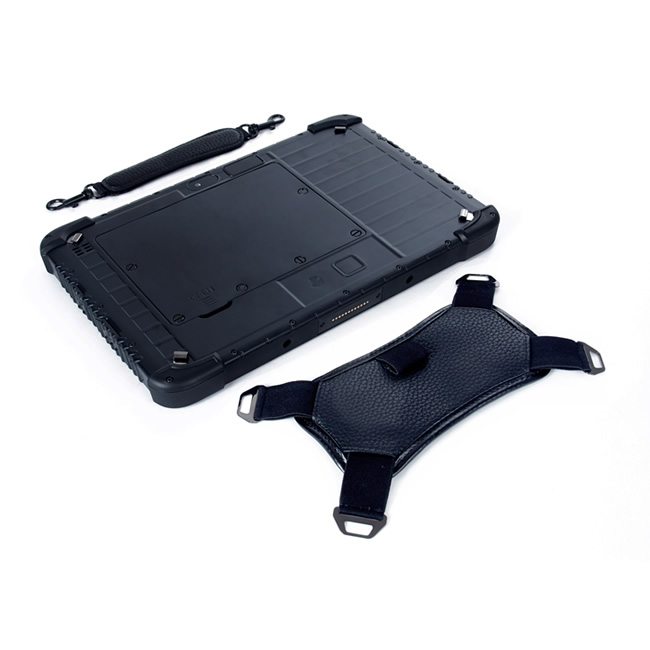

10.1 inch ip67 rugged tablet pc I16H
- Support for Windows 10 system
- Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
- 10000mAh battery, 10 hours of machine endurance
- IP65 high protection level, in accordance with MIL-STD-810G
- Support GPS, more accurate positioning
- Support 5 million pixel auto focus camera, easy to collect images and video information
- Support 1D/2D, NFC, ID card and other functional modules for free selection
ITDs Rugged tablet PCs with Windows allows abuses of everyday on-the-job use that are designed to withstand more challenges than their consumer-grade counterparts, with a much longer lifecycle. A variety of inputs and outputs designed to connect to equipment or transfer data and multiple wireless connectivity options bring the adaptability needed to match an ever-changing digital environment.  And with many available ITD rugged tablet pc attachments and modules like vehicle docks, docking charger, hand-strap hot-swappable batteries, UHF, RFID, NFC, fingerprint, QR reader, barcode scanner and more, you'll be amazed at the increase in productivity seen in your organization. Many of our tablets come with mounting solutions, including vehicle mounts to be used in heavy-duty machines or vehicles.

10.1 inch IP67 Rugged Tablet PC I16H

Model Name ITD101PPCT5-I16H
IP Rating IP65

Basic Parameter

Dimensions 280.418726.6mm
Weight Device Unit 1014g
Device Color Black
LCD Panel 10.1 inch IPS 16:10, 8001280/12001920
Touch Panel 10 point G+G Capacitive Touch Screen Corning Gorilla Glass
Camera Front 2.0MP Rear 5.0MP
I/O USB 2.0 Type-A1, Micro USB1,
SIM Card1, TF Card1,
HDMI 1.4a1, 12pins Pogo Pin1,
DB9 RS2321, RJ451
3.5mm standard earphone jack1,
5.5mm DC jack1
Power AC100-240V, 50Hz/60Hz, Output DC 5V/3A

Performance Parameters

CPU Intel Core Atom x5 Z8350
Storage 64GB/128GB
OS Windows 10


Capacity 3.7V/10000mAh
Type Li-polymer removable battery
Endurance 10hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )


WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth BT4.2
GNSS Built-in GPS
4G (Optional) LTE FDD: B1/B3/B5/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8

Data Collection

NFC Optional, 13.56MHz, ISO/IEC 14443A/B,
ISO/IEC 15693, ISO/IEC 18092
Fingerprint Optional, FPC1020
1D Optional, MOTO SE655E100R
2D Optional, EM80


Operating Temperature Range -20 C ~ 60 C
Storage Temperature Range -30 C ~ 70 C
Humidity 95% non-Condensing
Rugged Feature IP65 certified, MIL-STD-810G certified
Drop Height 1.22m
Next10.1 inch rugged heavy duty tablet PC I11H I11F
Previous8 inch Rugged Windows Tablet PC
