Products > Rugged Tablet PC > Rugged Tablet Windows PC  >  10.1 inch rugged heavy duty tablet PC I11H I11F

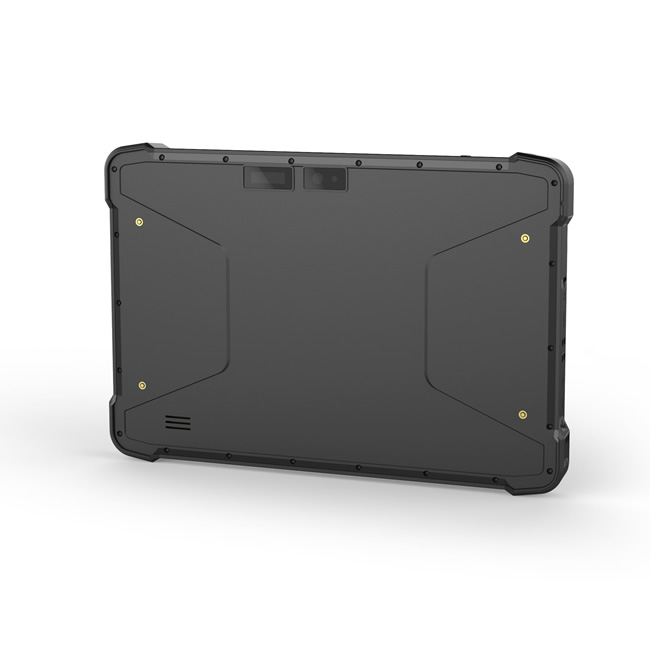

10.1 inch rugged heavy duty tablet PC I11H I11F
FEATURES
- Support for Windows 10 system
- Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
- 8000mAh battery, 6-8 hours of machine endurance
- IP65 high protection level, in accordance with MIL-STD-810G
- Optional GPS, more accurate positioning
- Support 5 million pixel auto focus camera, easy to collect images and video information
- Support 1D/2D, NFC and other functional modules for free selection
OVERVIEW
ITD¡¯s Rugged tablet PCs with Windows allows abuses of everyday on-the-job use that are designed to withstand more challenges than their consumer-grade counterparts, with a much longer lifecycle. A variety of inputs and outputs designed to connect to equipment or transfer data and multiple wireless connectivity options bring the adaptability needed to match an ever-changing digital environment.  And with many available ITD rugged tablet pc attachments and modules like vehicle docks, docking charger, hand-strap hot-swappable batteries, UHF, RFID, NFC, fingerprint, QR reader, barcode scanner and more, you'll be amazed at the increase in productivity seen in your organization. Many of our tablets come with mounting solutions, including vehicle mounts to be used in heavy-duty machines or vehicles.


10.1 inch Rugged Heavy Duty Tablet PC I11F I11H

Model Name ITD101PPCT5-I11F/I11H
IP Rating IP65

Basic Parameter

Dimensions 275.7¡Á187.5¡Á24.5mm
Weight Device Unit 1000g
Device Color Magnesium alloy black
LCD Panel 10.1 inch IPS 16:10, 800¡Á1280, 400nits
Touch Panel 5 point G+G Capacitive Touch Screen Corning Gorilla Glass
Camera Front 2.0MP Rear 5.0MP
I/O USB 2.0 Type-A¡Á1, Micro USB¡Á1,
SIM Card¡Á1, TF Card¡Á1,
HDMI 1.4a¡Á1, 12pins Pogo Pin¡Á1,
¦µ3.5mm standard earphone jack¡Á1,
¦µ3.5mm DC jack¡Á1
Power AC100-240V, 50Hz/60Hz, Output DC 5V/3A

Performance Parameters

CPU Intel? Core? Atom Z3735F
RAM 2G
Storage 64GB
OS Windows 10

Battery

Capacity 3.7V/8000mAh
Type Built-in Li-polymer battery
Endurance 8hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )

Communication

WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth BT4.1
GNSS Built-in GPS
4G (Optional) LTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B38/B40/B41
WCDMA: B1/B5/B8, GSM: B2/B3/B5/B8

Data Collection

NFC Optional, 13.56MHz, ISO/IEC 14443A/B,
ISO/IEC 15693, ISO/IEC 18092
1D Optional, MOTO SE655E100R
2D Optional, EM80

Reliability

Operating Temperature Range -20 ¡ãC ~ 60 ¡ãC
Storage Temperature Range -30 ¡ãC ~ 70 ¡ãC
Humidity 95% non-Condensing
Rugged Feature IP65 certified, MIL-STD-810G certified
Drop Height 1.22m
Next£º10.1 inch rugged industrial tablet PC I10J
Previous£º10.1 inch ip67 rugged tablet pc I16H
