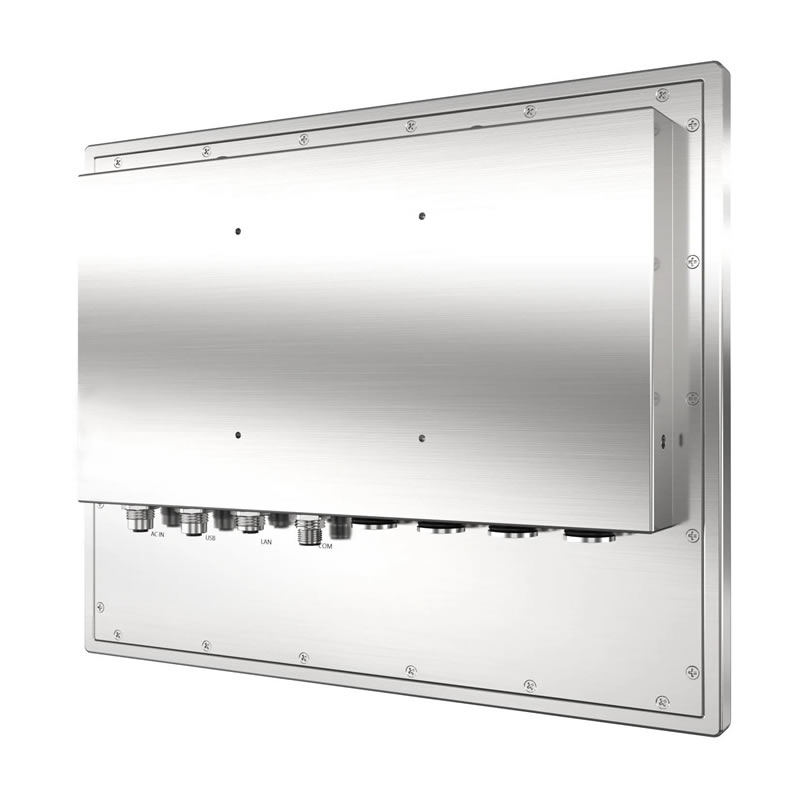

10.4 inch IP69K Stainless Steel Touchscreen Panel PC

Products > Rugged IP66/IP67/IP69K Stainless Displays > Rugged IP69K Stainless Steel Panel PC > 10.4 inch IP69K Stainless Steel Touchscreen Panel PC

BENEFITES
- High protection against water and dust: The IP69K rating is the highest level of protection against water and dust, making it ideal for use in harsh environments where equipment needs to withstand exposure to moisture, dust, and debris.
- Corrosion resistance: Stainless steel is highly resistant to corrosion, making it suitable for use in industries where the equipment is exposed to harsh chemicals or acids.
- Durability: Stainless steel is known for its strength and durability, which makes it a reliable choice for equipment that is subject to heavy use or impact.
- Easy to clean: The smooth surface of stainless steel makes it easy to clean.
- Wide temperature range: IP69K stainless steel panel PCs are designed to operate in a wide temperature range, making them suitable for use in both hot and cold environments.
- VESA mount: A panel PC can be mounted on a VESA mount, providing flexibility in how and where it can be used.
- Fanless design: An IP69K stainless steel panel PC typically features a fanless design, which reduces the risk of contamination and makes it suitable for use in cleanroom environments.
- Long lifespan: Stainless steel is known for its long lifespan, which means that equipment made from this material can last for many years, reducing the need for frequent replacements.

OVERVIEW
ITD’s IP69K stainless steel panel PC is a rugged and waterproof touch screen computer features a stainless steel housing, waterproof design, touchscreen display, high-performance processor, wide temperature range, sealed connectors, VESA mount, and fanless design, making it a reliable and durable option for industrial applications in harsh and challenging environments, such as those found in food and beverage processing, pharmaceutical manufacturing, marine and offshore industries, chemical processing, automotive manufacturing and other industrial and demanding applications. IP69K stainless steel panel PC also provides durability, hygiene, flexibility, high performance, and cost-effectiveness.

IP69K Touchscreen Panel PC

Model Name

ITD10PPCG1IP**-69K

IP Rating

IP69K

PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional)	X86 Based	X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel Celeron J1900/J4125/J6412 2.0GHz	Intel Core?i3/i5/i7 (4th~12th Generation optional)
Chipset: Rockchip	Chipset: Intel?Bay Trail SoC	Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional	Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412)	2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.)
HDD/SSD:?Default to?16G, Max. 128G	Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD	Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD
1×HDMI?Output; COM optional	1×VGA, 1×HDMI	1×VGA, 1×HDMI
2×USB, Max. 4×USB, 1×USB OTG (optional)	2×USB 2.0, 2×USB3.0, Max. 6	2×USB 2.0, 2×USB3.0, Max. 6
1×TF Card Slot(Supports 8~128G)	2×COM, Max. 6	2×COM, Max. 6
1×LAN	1×LAN, Dual LAN optional	1×LAN, Dual LAN optional
1×Audio Out	1×Realtek ALC662 , 1×Line-Out/MIC In	1×Realtek ALC662 , 1×Line-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions	Windows 7/10, Linux Windows 11(available for J4125/J6412)	Windows 7/10, Linux Windows 11(available for 7th gen. or above)

Default Waterproof Circular(M12) Connectors: 2×USB 2.0, 1×COM, 1×LAN, 1×DC

LCD Panel

Screen Diagonal (Inch/cm)

10.4”

Display Active Screen Size (mm)

211.26(H) ×158.4(V)mm

Aspect Ratio

4:3

Physical Resolution

1024×768

Response Time

16ms

Colors

262K/16.7M

Brightness (cd/m2)

350nits (1000nits optional)

Contrast Ratio

900:1

View Angels

75/75/75/75

Backlight/Backlight Lifetime

LED Backlight with 30000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-20~60°C

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED by Power Switch

Power Input

DC 12V(DC9-36V input optional)

Power Consumption

10~25W

Order Information

10.4”Full IP69K Panel PC with Resistive Touch, Intel J1900

ITD10PPCT1IPSJ1-69K

10.4”Full IP69K Panel PC with PCAP Touch, Intel J1900

ITD10PPCT5IPSJ1-69K

10.4”Full IP69K Panel PC with Tempered Glass, Intel J1900

ITD10PPCG1IPSJ1-69K

10.4”Full IP69K Panel PC with Resistive Touch, Intel J4124

ITD10PPCT1IPSJ4-69K

10.4”Full IP69K Panel PC with PCAP Touch, Intel J4125

ITD10PPCT5IPSJ4-69K

10.4”Full IP69K Panel PC with Tempered Glass, Intel J4125

ITD10PPCG1IPSJ4-69K

10.4”Full IP69K Panel PC with Resistive Touch, Intel J6412

ITD10PPCT1IPSJ6-69K

10.4”Full IP69K Panel PC with PCAP Touch, Intel J6412

ITD10PPCT5IPSJ6-69K

10.4”Full IP69K Panel PC with Tempered Glass, Intel J6412

ITD10PPCG1IPSJ6-69K

10.4”Full IP69K Panel PC with Resistive Touch, Intel i3

ITD10PPCT1IPSI3-69K

10.4”Full IP69K Panel PC with PCAP Touch, Intel i3

ITD10PPCT5IPSI3-69K

10.4”Full IP69K Panel PC with Tempered Glass, Intel i3

ITD10PPCG1IPSI3-69K

10.4”Full IP69K Panel PC with Resistive Touch, Intel i5

ITD10PPCT1IPSI5-69K

10.4”Full IP69K Panel PC with PCAP Touch, Intel i5

ITD10PPCT5IPSI5-69K

10.4”Full IP69K Panel PC with Tempered Glass, Intel i5

ITD10PPCG1IPSI5-69K
