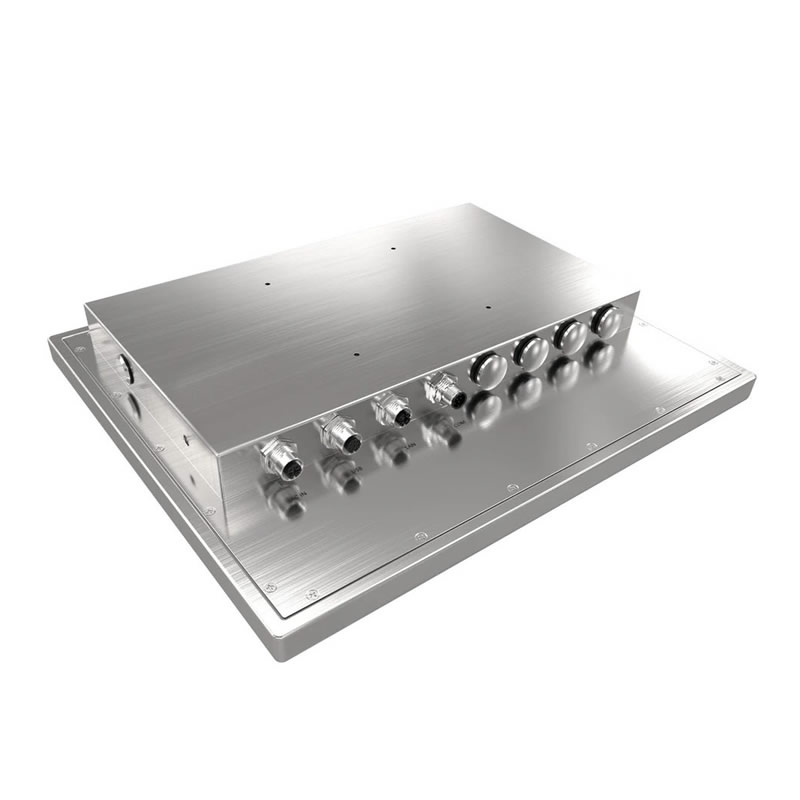

12.1 inch IP69K Stainless Steel Touchscreen Panel PC
BENEFITES
- Stainless Steel Construction: The housing of an IP69K stainless steel panel PC is made of high-quality stainless steel, which provides excellent resistance to corrosion and ensures long-term durability.
- Fully-Sealed Design: The panel PC is fully sealed to prevent water and dust from entering the system. The sealing is achieved through gaskets, O-rings and other sealing mechanisms, which ensures that the system is protected from harsh environments.
- High Temperature Resistance: The IP69K stainless steel panel PC is designed to withstand high temperatures of up to 80¡ãC. This feature is particularly important in environments where the PC may be subjected to heat, such as in food processing plants.
- Water and Dust Resistance: The IP69K stainless steel panel PC is designed to be water and dust-resistant, making it ideal for use in environments with high-pressure water and dust exposure. The system can withstand water pressure of up to 100 bar and high-temperature water up to 80¡ãC.
- Touch Screen: The panel PC has a touch screen interface that allows users to interact with the system without the need for a keyboard or mouse. The touch screen is made of toughened glass and is designed to withstand the harsh environment.
- High Processing Power: The IP69K stainless steel panel PC is equipped with a powerful processor, allowing it to handle demanding applications and process large amounts of data quickly.
- Flexible Mounting Options: The panel PC can be mounted in various ways, such as on a wall, stand, or swing arm. This feature allows for easy integration into different types of systems and environments.
- Long lifespan: Stainless steel is known for its long lifespan, which means that equipment made from this material can last for many years, reducing the need for frequent replacements.
OVERVIEW
ITD¡¯s IP69K stainless steel panel PC is a rugged and waterproof touch screen computer features a stainless steel housing, waterproof design, touchscreen display, high-performance processor, wide temperature range, sealed connectors, VESA mount, and fanless design, making it a reliable and durable option for industrial applications in harsh and challenging environments, such as those found in food and beverage processing, pharmaceutical manufacturing, marine and offshore industries, chemical processing, automotive manufacturing and other industrial and demanding applications. IP69K stainless steel panel PC also provides durability, hygiene, flexibility, high performance, and cost-effectiveness.


IP69K Touchscreen Panel PC

Model Name ITD12PPCG1IP**-69K
IP Rating IP69K

PC Systems Options

ARM Android Based RK3288(RK3566/RK3399 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel? Celeron J1900/J4125/J6412 CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th Gen. optional)
Chipset: Rockchip Chipset: Intel? SOC Chipset: Intel? SOC
Memory: 2G, max. 4G Memory: 4GB(Max. 16GB) Memory: 4GB(Max. 32GB)
HDD/SSD: 8G, max. 128G HDD/SSD: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2(available for J4125/J6412)
HDD/SSD: 1¡ÁMSATA, 1¡ÁSATA
1¡ÁM.2
1¡ÁHDMI (optional) 1¡ÁVGA, 1¡ÁHDMI 1¡ÁVGA, 1¡ÁHDMI
2¡ÁUSB 2.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0 2¡ÁUSB 2.0, 2¡ÁUSB3.0
1¡Ámini-SD slot 2¡ÁCOM(RS232/422/485) 2¡ÁCOM(RS232/422/485)
1¡ÁLAN 1¡ÁLAN 1¡ÁLAN
1¡ÁAudio Out 1¡ÁAudio Out, 1¡ÁMIC In 1¡ÁAudio Out, 1¡ÁMIC In
Expansion: COM port Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe
Android, Linux Supported Windows 7/10/11/Embedded/IoT, Linux Supported Windows 7/10/11/Embedded/IoT, Linux Supported


Default Waterproof Circular(M12) Connectors:  2
¡ÁUSB 2.0, 1¡ÁCOM, 1¡ÁLAN, 1¡ÁDC


LCD Panel

Screen Diagonal (Inch/cm) 12.1¡±
Display Active Screen Size (mm) 245.76(H) ¡Á184.32(V)mm
Aspect Ratio 4:3
Physical Resolution 1024¡Á768
Response Time 16ms
Colors 262K/16.7M
Brightness (cd/m2) 350nits (1000nits optional)
Contrast Ratio 800:1
View Angels 80/80/80/80
Backlight/Backlight Lifetime LED Backlight with 30000 Hours¡¯ Lifetime

Touch Panel

Touch Options Resistive, PCAP
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range -20~60¡ãC
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED by Power Switch
Power Input DC 12V(DC9-36V input optional)
Power Consumption 10~28W

Order Information

12.1¡±Full IP69K Panel PC with Resistive Touch, Intel J1900 ITD12PPCT1IPSJ1-69K
12.1¡±Full IP69K Panel PC with PCAP Touch, Intel J1900 ITD12PPCT5IPSJ1-69K
12.1¡±Full IP69K Panel PC with Tempered Glass, Intel J1900 ITD12PPCG1IPSJ1-69K
12.1¡±Full IP69K Panel PC with Resistive Touch, Intel J4124 ITD12PPCT1IPSJ4-69K
12.1¡±Full IP69K Panel PC with PCAP Touch, Intel J4125 ITD12PPCT5IPSJ4-69K
12.1¡±Full IP69K Panel PC with Tempered Glass, Intel J4125 ITD12PPCG1IPSJ4-69K
12.1¡±Full IP69K Panel PC with Resistive Touch, Intel J6412 ITD12PPCT1IPSJ6-69K
12.1¡±Full IP69K Panel PC with PCAP Touch, Intel J6412 ITD12PPCT5IPSJ6-69K
12.1¡±Full IP69K Panel PC with Tempered Glass, Intel J6412 ITD12PPCG1IPSJ6-69K
12.1¡±Full IP69K Panel PC with Resistive Touch, Intel i3 ITD12PPCT1IPSI3-69K
12.1¡±Full IP69K Panel PC with PCAP Touch, Intel i3 ITD12PPCT5IPSI3-69K
12.1¡±Full IP69K Panel PC with Tempered Glass, Intel i3 ITD12PPCG1IPSI3-69K
12.1¡±Full IP69K Panel PC with Resistive Touch, Intel i5 ITD12PPCT1IPSI5-69K
12.1¡±Full IP69K Panel PC with PCAP Touch, Intel i5 ITD12PPCT5IPSI5-69K
12.1¡±Full IP69K Panel PC with Tempered Glass, Intel i5 ITD12PPCG1IPSI5-69K
