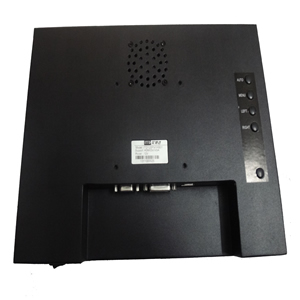

10.4 inch Open Frame LCD Monitor

Products > Industrial Touchscreen LCD > Open Frame LCD Monitor > 10.4 inch Open Frame LCD Monitor

BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrial environments
-Easy-to-install cabinet and open frame rear-mount display
-Multiple mounting options (75/100mm VESA mount and side brackets)
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial open frame displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application. ITD open frame LCD monitors are packaged in a steel enclosure and durable glass front surface provide the durability needed for demanding industrial environments. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.

Open Frame LCD Monitor
Model Name	ITD10OFN1M1
IP Rating	N/A
LCD Panel
Screen Diagonal (Inch/cm)	10.4”
Display Active Screen Size (mm)	211.2(H) ×158.4(V)
Aspect Ratio	4:3
Physical Resolution	800×600
Maximum Resolution Supported	1920×1080
Colors	16.7M
Brightness (cd/m2)	300nits
Contrast Ratio	500:1
View Angels	80/80/70/70
Backlight/Backlight Lifetime	LED backlight with 50000 hours’lifetime
Touch Panel
Touch Options	Resistive, IR, SAW, PCAP
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input	1 × VGA
	1 × DVI-I
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × DC2.0
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 12V
Power Consumption	10W
Order Information
10.4”Open Frame LCD Monitor with Resistive Touch	ITD10OFT1M1
10.4”Open Frame LCD Monitor with IR Touch 10.4”open frame monitor LCD monitor with SAW touch 10.4”open frame monitor LCD monitor with projected capacitive touch	ITD10OFT2M1 ITD10OFT3M1 ITD10OFT5M1
