Products > Industrial Touchscreen LCD > Open Frame LCD Monitor  >  12.1 inch Open Frame LCD Monitor

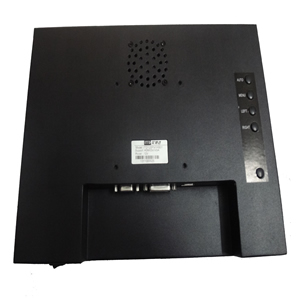

12.1 inch Open Frame LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrial environments
-Easy-to-install cabinet and open frame rear-mount display
-Multiple mounting options (75/100mm VESA mount and side brackets)
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project
ITD industrial open frame displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application.  ITD open frame LCD monitors are packaged in a steel enclosure and durable glass front surface provide the durability needed for demanding industrial environments. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.




Open Frame LCD
Monitor



Model Name

ITD12OFN1M1

IP Rating

N/A


LCD Panel



Screen Diagonal (Inch/cm)

 12.1¡±

Display Active Screen Size (mm)

246(H)*184.5(V)

Aspect Ratio

4:3

Physical Resolution

800X600

Maximum Resolution Supported

1920X1080

Colors

16.7M

Brightness (cd/m2)

300nits

Contrast Ratio

500:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel



Touch Options

Resistive, IR, SAW, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

18W


Order Information



12.1¡±Open Frame LCD Monitor with Resistive Touch

ITD12OFT1M1

12.1¡±Open Frame LCD Monitor with IR Touch

12.1¡±open frame monitor LCD monitor with projected capacitive touch

ITD12OFT2M1

ITD12OFT5M1

Next£º12.1 inch Wide ScreenOpen Frame LCD Monitor
Previous£º10.4 inch Open Frame LCD Monitor
