OVERVIEW
ITD industrial panel mount LCD displays are purpose-built for continuous operation in tough industrial conditions, delivering dependable performance, structural strength, and long-term product availability. The displays feature a reinforced steel housing paired with a solid aluminum front bezel, providing enhanced resistance to impact, vibration, and environmental stress commonly found in industrial sites. An IP65 / NEMA 4-rated front panel, together with a high-strength glass surface, effectively protects the display against water ingress, dust, and other industrial pollutants. The latest mechanical design supports both PCAP and resistive touch technologies, forming a seamless flat front that simplifies cleaning and maintenance—an important advantage for applications requiring frequent interaction or strict hygiene control. Designed for easy system integration, ITD panel mount monitors support VGA and HDMI signal inputs, offer multiple DC power input options, and accommodate a wide range of mounting methods to suit different installation scenarios. With a stable and extended product lifecycle, these displays help customers maintain consistency and reduce redesign efforts over the lifespan of their projects. ITD industrial panel mount LCD solutions are well suited for a broad range of applications, including industrial automation systems, HMI interfaces, machinery control, kiosks, food and beverage processing equipment, transportation systems, in-vehicle installations, and marine environments.

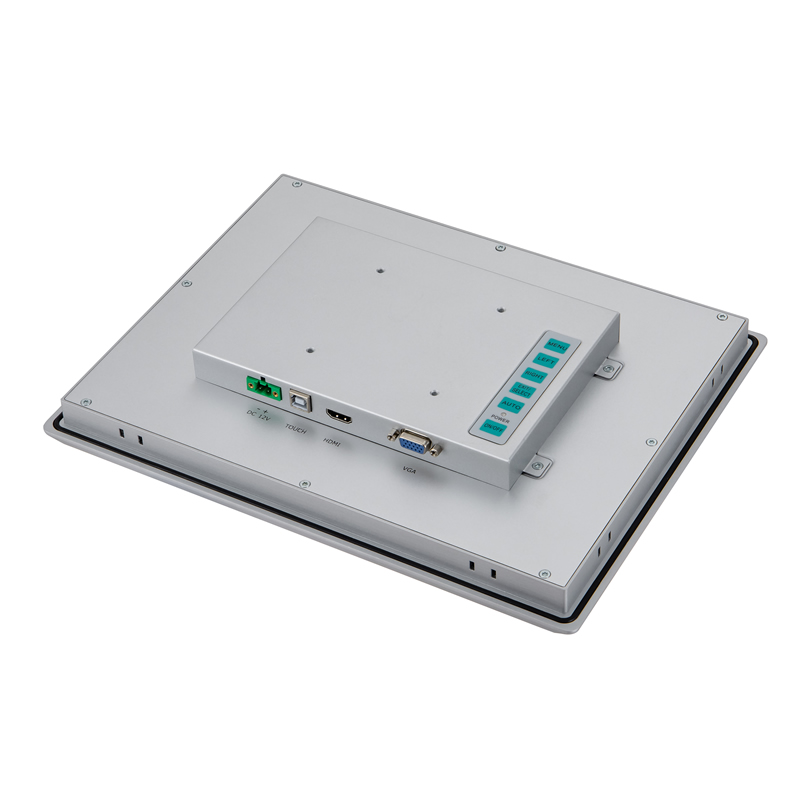

Panel Mount Touch Screen Monitor
Model Name	ITD10PMT5X1_V2
IP Rating	IP65 Front Panel
LCD Panel
Screen Diagonal (Inch)	10.4”
Display Active Screen Size (mm)	211.2(W)×158.4(H)
Aspect Ratio	16:10
Physical Resolution	1280×800
Pixel Pitch(mm)	0.20625×0.20625
Colors	262K/16.7M
Response Time	16ms
Brightness (cd/m2)	350 (500~1000 optional)
Contrast Ratio	900:1
View Angels	75/75/75/75
Backlight/Backlight Lifetime	LED Backlight with 30000Hours'Lifetime
Touch Panel
Touch Options	PCAP, Resistive
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input	1 × VGA
	1 × DVI-I, 1 × Display Port(optional)
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × Phoenix Connector
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC9~28V input
Power Consumption	8.75W
Order Information
10.4”Panel Mount LCD Monitor with Resistive Touch	ITD10PMT1X1_V2
10.4”Panel Mount LCD Monitor with PCAP Touch	ITD10PMT5X1_V2
10.4”Panel Mount LCD Monitor with Tempered Glass	ITD10PMG1X1_V2
10.4”1000nits Panel Mount LCD Monitor with Resistive Touch	ITD10PMT1HBX2_V2
10.4”1000nits Panel Mount LCD Monitor with PCAP Touch	ITD10PMT5HBX2_V2
10.4”1000nits Panel Mount LCD Monitor with Tempered Glass	ITD10PMG1HBX2_V2
