OVERVIEW
ITD industrial panel mount LCD monitors are engineered to provide reliable, long-lasting performance in challenging industrial environments, combining rugged construction with consistent operation. Each unit features a durable steel enclosure reinforced with an aluminum front bezel, designed to withstand impacts, vibrations, and harsh conditions typical in factories and industrial sites. The IP65/NEMA 4-rated front panel, along with a high-strength tempered glass surface, offers robust protection against dust, water, and contaminants, ensuring the display remains fully functional in demanding conditions. Advanced mechanical design accommodates both resistive and PCAP touch technologies, creating a smooth, flush front surface that is easy to clean and maintain—perfect for applications with frequent user interaction or strict hygiene requirements. These industrial displays are ideal for a wide variety of applications, such as automation and control systems, HMI panels, industrial machinery interfaces, kiosks, food and beverage processing equipment, transportation systems, in-vehicle solutions, and marine operations. With their robust design and dependable operation, ITD monitors deliver both performance and reliability across diverse industrial scenarios.

Panel Mount Touch Screen Monitor
Model Name	ITD11PMT5X1_V2
IP Rating	IP65 Front Panel
LCD Panel
Screen Diagonal (Inch)	11.6”
Display Active Screen Size (mm)	256.32(W)×144.18(H)
Aspect Ratio	16:9
Physical Resolution	1920×1080
Pixel Pitch(mm)	0.1335×0.1335 mm
Colors	16.7M
Response Time	30ms
Brightness (cd/m2)	250 (500~1000 optional)
Contrast Ratio	1000:1
View Angels	80/80/80/80
Backlight/Backlight Lifetime	LED Backlight with 30000Hours'Lifetime
Touch Panel
Touch Options	PCAP, Resistive
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi

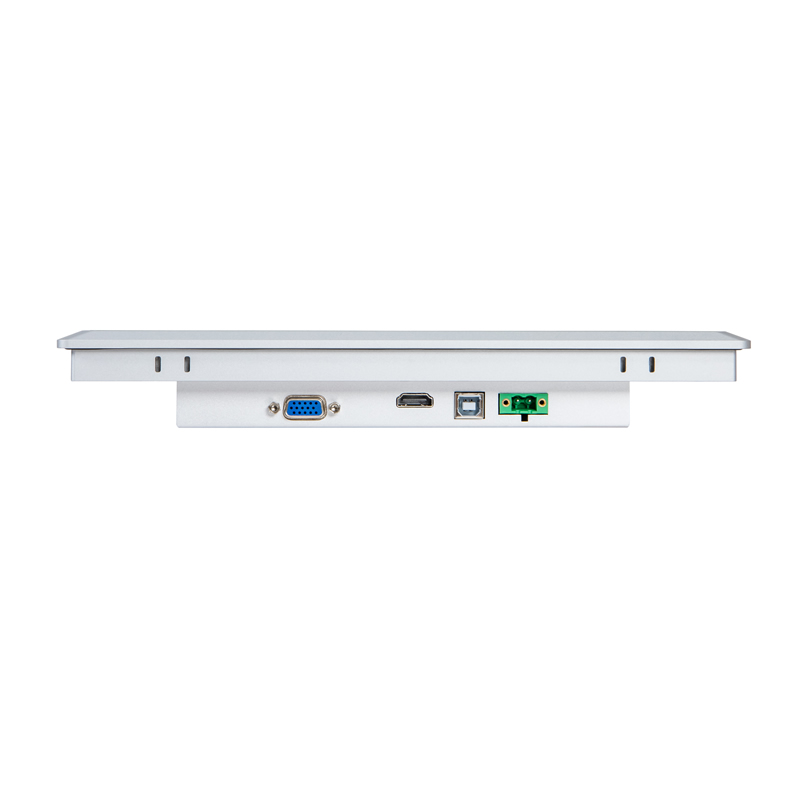

Input / Output
Video Input	1 × VGA
	1 × DVI-I, 1 × Display Port(optional)
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × Phoenix Connector
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC9~28V input
Power Consumption	5W
Order Information
11.6”Panel Mount LCD Monitor with Resistive Touch	ITD11PMT1X1_V2
11.6”Panel Mount LCD Monitor with PCAP Touch	ITD11PMT5X1_V2
11.6”Panel Mount LCD Monitor with Tempered Glass	ITD11PMG1X1_V2
11.6”1000nits Panel Mount LCD Monitor with Resistive Touch	ITD11PMT1HBX2_V2
11.6”1000nits Panel Mount LCD Monitor with PCAP Touch	ITD11PMT5HBX2_V2
11.6”1000nits Panel Mount LCD Monitor with Tempered Glass	ITD11PMG1HBX2_V2
