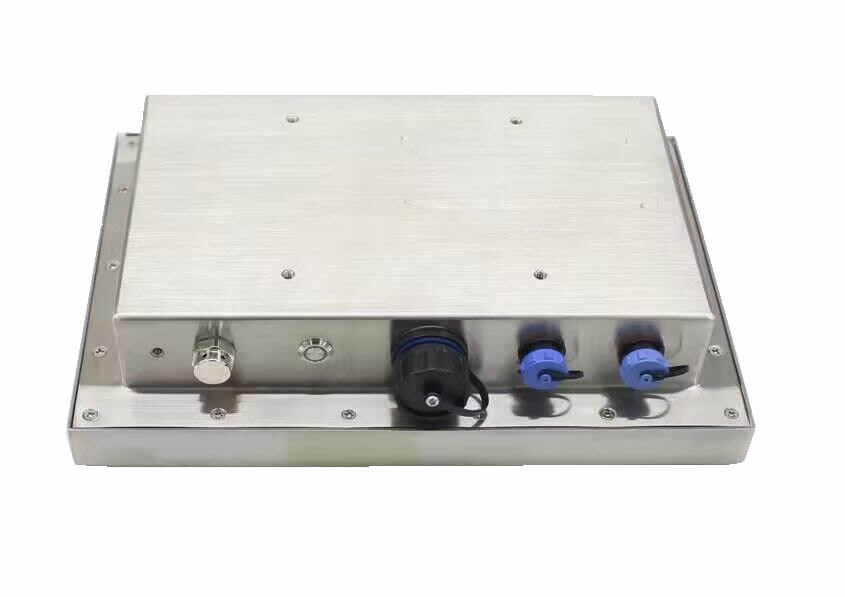

Full IP65/IP66 Touchscreen Monitor

Model Name

ITD12CMG1IP*1W

IP Rating

Full IP65/IP66(IP67 optional)

LCD Panel

Screen Diagonal (Inch/cm)

12.1”

Display Active Screen Size (mm)

261.12(H) x 163.2(V)mm

Aspect Ratio

16:10

Physical Resolution

1280 x 800

Maximum Resolution Supported

1920 x 1200

Colors

16.2M

Brightness (cd/m2)

300nits

Contrast Ratio

800:1

View Angels

80/80/65/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Default Waterproof Connectors

Video Input

1 × HDMI

Audio

Optional

Touch Connector

1 × USB(Optional)

Power Connector

1 × DC2.0

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

N/A

Power Input

DC 12V

Power Consumption

16W

Order Information

12.1”Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing

ITD12CMT1IPA1W

12.1”Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing

ITD12CMT5IPA1W

12.1”Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing

ITD12CMT1IPS1W

12.1”Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing

ITD12CMT5IPS1W

12.1”Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing

ITD12CMG1IPA1W

12.1”Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing

ITD12CMG1IPS1W
