Full IP65/IP66 Touchscreen Monitor

Model Name

ITD13CMG1IP*1

IP Rating

Full IP65/IP66(IP67 optional)

LCD Panel

Screen Diagonal (Inch/cm)

13.3”

Display Active Screen Size (mm)

293.472(H) x 165.078(V)mm

Aspect Ratio

16:9

Physical Resolution

1920 x 1080

Maximum Resolution Supported

1920 x 1080

Colors

16.2M

Brightness (cd/m2)

400nits

Contrast Ratio

800:1

View Angels

85/85/85/85

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, PCAP, Infrared

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

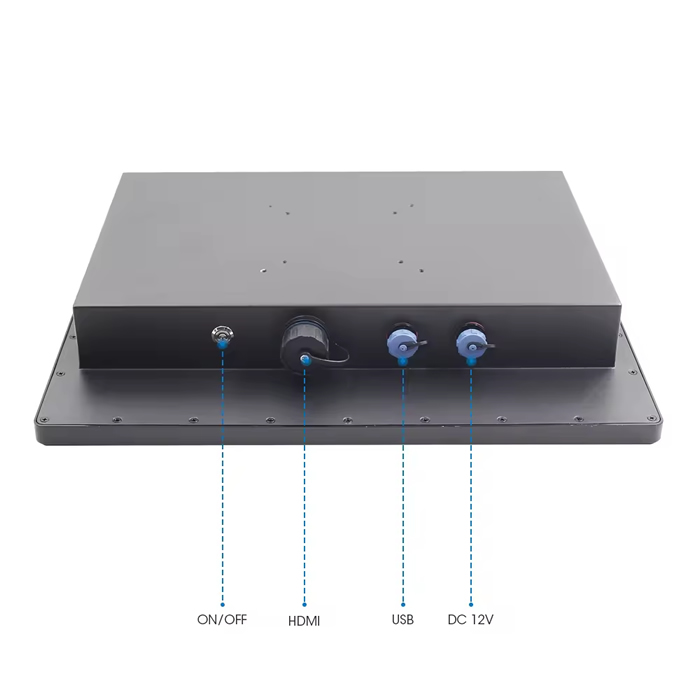

Default Waterproof Connectors

Video Input

1 × HDMI

Audio

Optional

Touch Connector

1 × USB(Optional)

Power Connector

1 × DC2.0

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

N/A

Power Input

DC 12V

Power Consumption

16W

Order Information

13.3”Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing

ITD13CMT1IPA1

13.3”Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing

ITD13CMT5IPA1

13.3”Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing

ITD13CMT1IPS1

13.3”Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing

ITD13CMT5IPS1

13.3”Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing

ITD13CMG1IPA1

13.3”Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing

ITD13CMG1IPS1
