Products > Rugged Tablet PC > Rugged Tablet Android  >  12.2 inch Rugged Android Tablet Q22M

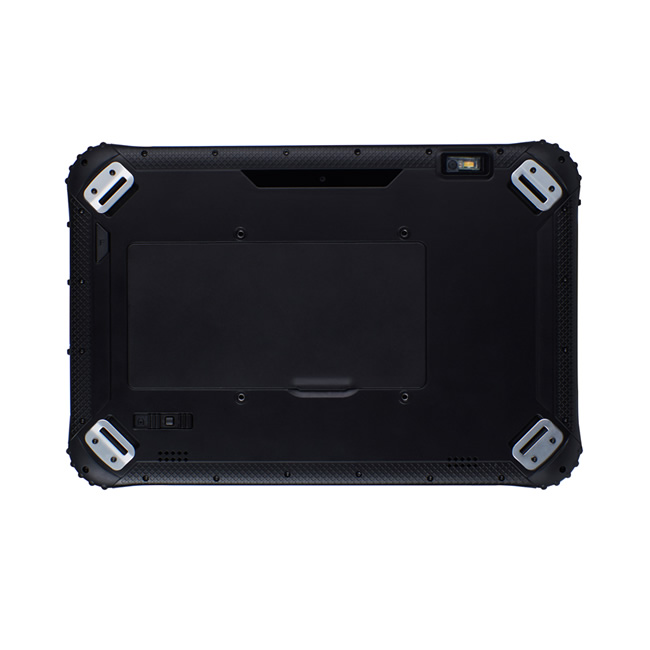

12.2 inch Rugged Android Tablet Q22M
FEATURES
- Support for Andriod 10 system
- Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
- 12600mAh battery, 6-8 hours of machine endurance
- IP65 high protection level, in accordance with MIL-STD-810G
- Support GPS, Glonass, Beidou, more accurate positioning
- Support 1920x1200 high score screen, optional with Corning gorilla TP
- Support 1D/2D, NFC and other functional modules for free selection
OVERVIEW
ITD¡¯s rugged Android tablets means they can withstand vibrations, making them suitable for mounting on forklift or vehicles, where consumer-grade tablets would fail. Having a wider operating and storage temperatures also allow you to use them in a vast range of environments vs consumer grade devices. Our rugged Android tablets can withstand the abuses of the job and reliably keep you connected wherever you go. The rugged Android tablet is fully waterproof, rugged, and it¡¯s lightweight and compact. It runs on Android 9/10 and comes standard with WiFi, 4G LTE, BT 4.1/5.0 and GPS. The rugged Android tablet is ideal for fleet management, logistics applications and field services, due to its compact size, light weight, and durability.


10.1 inch Rugged Android Tablet PC Q22M

Model Name ITD122PPCT5-Q22M
IP Rating IP65

Basic Parameter

Dimensions 319.6¡Á216¡Á 24.3mm
Weight Device Unit 1500g
Device Color Black
LCD Panel 12.2 inch IPS 16:10, 1920¡Á1200
Touch Panel 10 point G+G Capacitive Touch Screen Corning Gorilla Glass
Camera Front 5.0MP Rear 13.0MP
I/O USB 2.0 Type-A¡Á2, USB 3.0 Type-A¡Á1,
USB Type-C¡Á1, SIM Card¡Á1, TF Card¡Á1,
HDMI 1.4a¡Á1, 12pins Pogo Pin¡Á1,
RS232¡Á1, RS232/485¡Á1, RJ45 (10/100M) ¡Á1,
¦µ3.5mm standard earphone jack¡Á1,
¦µ3.5mm DC jack¡Á1
Power AC100-240V, 50Hz/60Hz, Output DC 5V/4A

Performance Parameters

CPU Qualcomm(OCTA Core), 2.0GHz
RAM 4G
Storage 64G
OS Android 10

Battery

Capacity 3.7V/12600mAh
Type Li_polyment, removeable battery
Endurance 8hrs ( 50% volume sounds, 50% brightness,1080P HD video display by default )

Communication

WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5G)
Bluetooth BT4.2
GNSS Built-in GPS+Glonass, Support Beidou
3G/4G (Optional) WCDMA: B1/B5/B8
GMS: B5/B3/B8
TDD-LTE: B38/B40/B41
FDD-LTE: B1/B3/B5/B7/B8/B20

Data Collection

NFC Built-in, ISO/IEC 14443A
1D Optional, MOTO SE655E100R
2D Optional, EM80

Reliability

Operating Temperature Range -20 ¡ãC ~ 60 ¡ãC
Storage Temperature Range -30 ¡ãC ~ 70 ¡ãC
Humidity 95% non-Condensing
Rugged Feature                          IP65 certified, MIL-STD-810G certified
Drop Height 1.22m
Next£º7 inch Rugged Windows Tablet PC I75H
Previous£º10.1inch rugged android tablet T11P
