7 inch Rugged Windows Tablet PC I75H
FEATURES
- Support for Windows 10 system
- Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
- 7500mAh battery, 6-8 hours of machine endurance
- IP65 high protection level, in accordance with MIL-STD-810G
- Support GPS, Beidou, GLONASS, more accurate positioning
- 800x1280 IPS, 1000nit high brightness screen, more suitable for outdoor harsh environment
- Support 1D/2D, UHF, NFC, ID card and other functional modules for free selection
OVERVIEW
ITD¡¯s Rugged tablet PCs with Windows allows abuses of everyday on-the-job use that are designed to withstand more challenges than their consumer-grade counterparts, with a much longer lifecycle. A variety of inputs and outputs designed to connect to equipment or transfer data and multiple wireless connectivity options bring the adaptability needed to match an ever-changing digital environment.  And with many available ITD rugged tablet pc attachments and modules like vehicle docks, docking charger, hand-strap hot-swappable batteries, UHF, RFID, NFC, fingerprint, QR reader, barcode scanner and more, you'll be amazed at the increase in productivity seen in your organization. Many of our tablets come with mounting solutions, including vehicle mounts to be used in heavy-duty machines or vehicles.


7 inch Rugged Windows Tablet PC I75H

Model Name ITD07PPCT5-I75H
IP Rating IP65

Basic Parameter

Dimensions 217¡Á134¡Á21.4mm
Weight Device Unit 680g
Device Color Black
LCD Panel 7 inch IPS 16:10, 800¡Á1280, 1000nits
Touch Panel 5 point G+G Capacitive Touch Screen Corning Gorilla Glass
Camera Front 2.0MP Rear 5.0MP

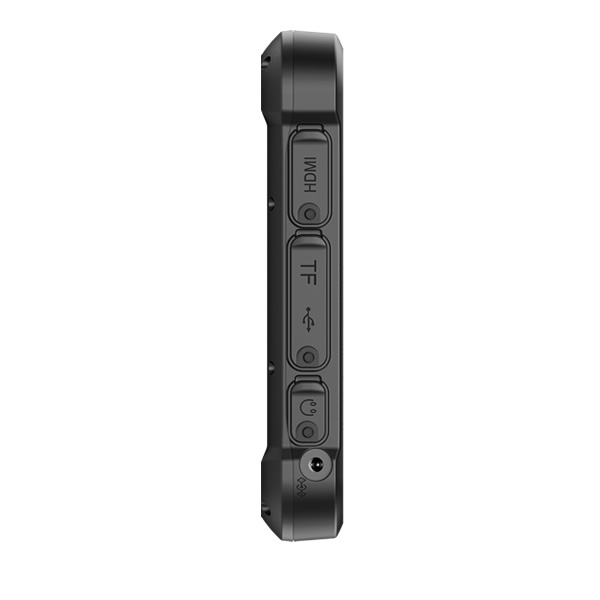

I/O HDMI 1.4a¡Á1,
Micro USB 2.0 ¡Á 1,
SIM Card x 1, TF Card ¡Á1,
12pins Pogo Pin ¡Á 1,
¦µ3.5mm Standard Earphone Jack ¡Á 1, ¦µ3.5mm DC Jack ¡Á 1
Power AC100-240V, 50Hz/60Hz, Output DC 5V/3A

Performance Parameters

CPU Intel Atom x5 Z8350
RAM 4G
Storage 64G
OS Windows 10

Battery

Capacity 3.7V/7500mAh
Type Built in Polymer Lithium Ion Battery
Endurance 6hrs ( 50% volume sounds, 50% brightness,1080P HD video display by default )

Communication

WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth BT4.2
GNSS Built-in Glonass, Beidou, GPS
3G/4G (Optional) LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8

Data Collection

NFC                            Optional, 13.56MHz, ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092
1D Optional, N4313
2D Optional, EM80
UHF Optional, M-550 UHF RFID
ID                          Optional reading the fingerprint information in the 1st and 2nd ID card
Fingerprint                            Optional, Fingerprint collection module for ID card

Reliability

Operating Temperature Range -20 ¡ãC ~ 60 ¡ãC
Storage Temperature Range -30 ¡ãC ~ 70 ¡ãC
Humidity 95% non-Condensing
Rugged Feature IP65 certified, MIL-STD-810G certified
Drop Height 1.22m
