Products > Industrial Touchscreen LCD > Chassis LCD Monitor  >  13.3 inch Chassis LCD Monitor

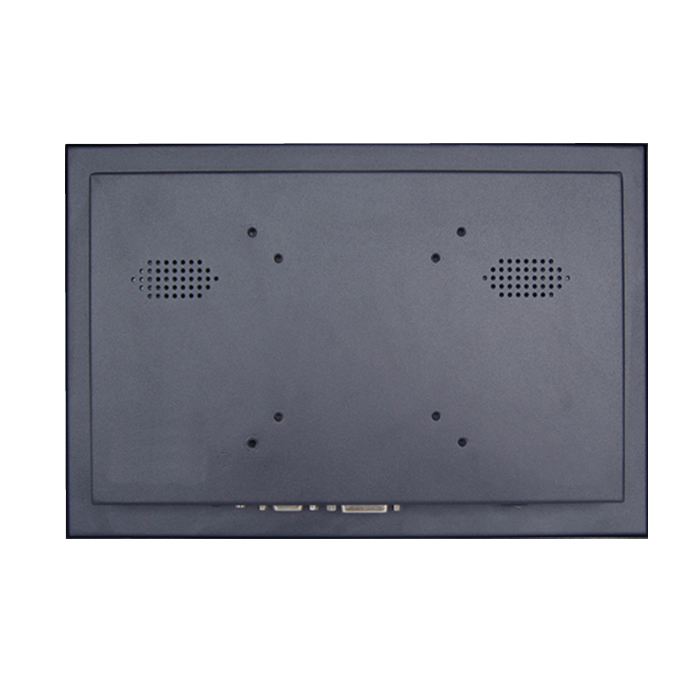

13.3 inch Chassis LCD Monitor
BENEFITES
- Exceptional quality and highly engineered industrial monitors
- Optional touchscreens like resistive, IR, SAW, PCAP
- All steel construction designed for harsh and industrial environments
- Easy-to-install cabinet and chassis VESA-mount display
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassis LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. Industrial chassis LCD monitors are designed for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminals and industrial machinery builder applications. ITD full-range selection is provided in screen sizes from 5.7¡±~85¡±.


Chassis LCD
Monitor

Model Name

ITD13CMN101

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch)

13.3¡±

Display Active Screen Size (mm)

293.472(H) x 165.078(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.2M

Brightness (cd/m2)

400nits

Contrast Ratio

800:1

View Angels

85/85/85/85

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

15W


Order Information

13.3¡±Chassis LCD Monitor with Resistive Touch

ITD13CMT101

13.3¡±Chassis LCD Monitor with IR Touch

ITD13CMT201

13.3¡±Chassis LCD Monitor with SAW Touch

ITD13CMT301

13.3¡±Chassis LCD Monitor with PCAP Touch

ITD13CMT501

13.3¡±Chassis LCD Monitor with Tempered Glass

ITD13CMG101
